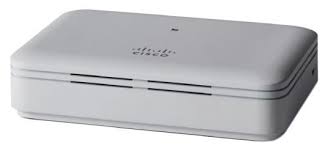

Cisco Aironet wireless 1815 Series AIR-AP1815T-S-K9

Thiết bị mạng Cisco  AIR-AP1815T-S-K9 Integrated antennas ● 2.4 GHz, gain 2 dBi ● 5 GHz, gain 3 dBi Interfaces ● 1 x 10/100/1000BASE-T autosensing (RJ-45) ● Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port: ◦ PoE out provides 802.3af when access point is powered by Cisco local power supply (AIR-PWR-D=)

Thiết bị mạng Wifi Cisco AIR-AP1815T-S-K9

Integrated antennas	●  2.4 GHz, gain 2 dBi
	●  5 GHz, gain 3 dBi
Interfaces	●  1 x 10/100/1000BASE-T autosensing (RJ-45)
	●  Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port:
	◦   PoE out provides 802.3af when access point is powered by Cisco local power supply (AIR-PWR-D=)
Indicators	●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	●  Access point (without mounting bracket): 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7mm)
Weight	●  Access point without mounting bracket or any other accessories: 13 oz (365 g)
Environmental	●  Operating
	◦   Temperature: 32° to 104°F (0° to 40°C)
	◦   Humidity: 10% to 90% (non-condensing)
	◦   Max. altitude: 9843 ft (3,000 m) @ 40°C
	●  Non-operating (storage and transportation)
	◦   Temperature: -22° to 158°F (-30° to 70°C)
	◦   Humidity: 10% to 90% (non-condensing)
	◦   Max. altitude: 15,000 ft (4,500 m) @ 25°C
System	●  512 MB DRAM
	●  128 MB flash
	●  710 MHz quad-core
Powering options	●  802.3af: 15.4W at port
	●  44 to 52V DC
Power draw	●  8.5W (no PoE out and no USB)
Physical security	●  Kensington lock slot
Accessories	●  Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports
Compliance	●  Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1
	●  Radio approvals: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66 (Japan), ARIB-STD T71 (Japan), EMI and susceptibility (Class B), FCC Part 15.107 and 15.109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1 and -17 (Europe), EN 50385
	●  IEEE standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d, IEEE 802.11ac
	●  Security: 802.11i, WPA2, WPA, 802.1X, AES
	●  Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS), EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2), Protected EAP (PEAP) v0 or EAP-MSCHAPv2, EAP-Flexible Authentication via Secure Tunneling (FAST), PEAP v1 or EAP-Generic Token Card (GTC), EAP-Subscriber Identity Module (SIM)
	●  Multimedia: Wi-Fi Multimedia (WMM)
	●  Other: FCC Bulletin OET-65C, RSS-102
Authentication and security	●  Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)
	●  802.1X, RADIUS authentication, authorization, and accounting (AAA)
	●  802.11r
	●  802.11i
Software	●  Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later
Maximum clients	●  Maximum number of associated Wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac	●  2x2 single-user/multiuser MIMO with two spatial streams
	●  Maximal ratio combining (MRC)
	●  20-, 40-, and 80-MHz channels
	●  PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
	●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
	●  802.11 Dynamic Frequency Selection (DFS)
	●  Cyclic shift diversity (CSD) support
Ethernet ports	●  Authentication with 802.1X or MAC filtered
	●  Dynamic VLAN or per port
	●  Traffic locally switched or tunneled back to wireless LAN controller
