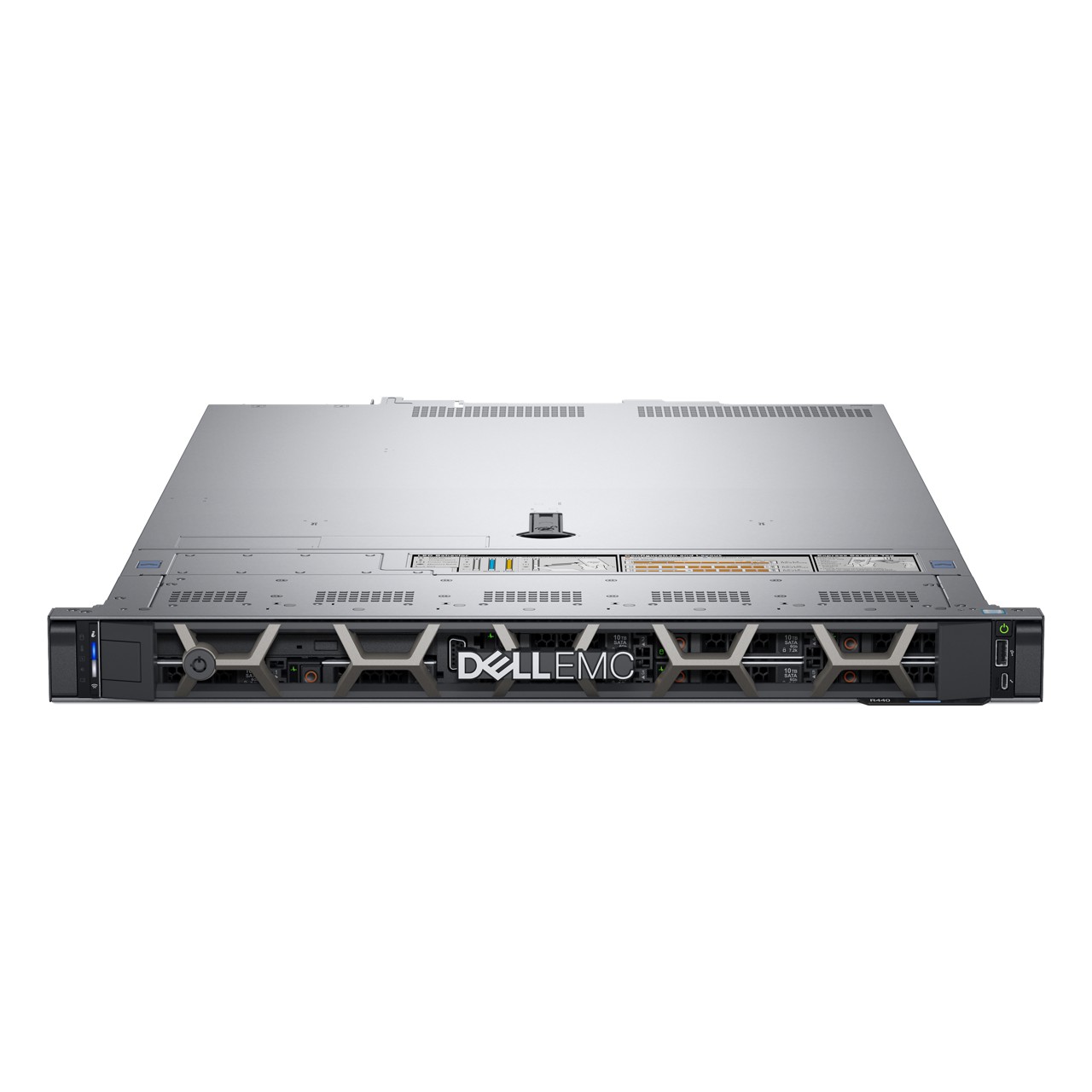

Dell PowerEdge R440 Silver 4110

Processor

Up to two Intel® Xeon® Scalable processors, up to 22 cores per processor

Memory

16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1TB max*

Storage controllers

Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID): H840
External HBAs (non-RAID): 12 Gbps SAS HBA

Drive bays

Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 4 NVMe SSD max 48TB or
up to 4 x 3.5 SAS/SATA HDD max 56TB
Optional DVD-ROM, DVD+RW

Power supplies
Fans

Bronze 450W, Platinum 550W
Six hot pluggable fans for N+1 redundancy

Sizing

Form factor: Rack (1U)

Chassis: 728.23 mm Front Bezel to Rear PSU Handle
714.58 mm Front plate (no bezel) to Rear PSU Handle

Bezel

Optional LCD or security bezel

Embedded / At-Server

iDRAC9 with Lifecycle Controller
iDRAC Direct

iDRAC REST API with Redfsh
Quick Sync 2 BLE/wireless module

Consoles & Mobile

OpenManage Enterprise (available soon)
OpenManage Essentials

OpenManage Mobile
OpenManage Power Center

Integrations

OpenManage integrations: Microsoft® System Center, VMware® vCenter™, BMC Software

Connections

OpenManage connections: Nagios & Nagios XI,HP Operations Manager

Tools

Dell EMC Repository Manager
Dell EMC Update Package
Dell EMC System Update
Dell EMC Server Update Utility

iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services

Security

TPM 1.2/2.0 optional
Cryptographically signed frmware
Silicon Root of Trust

Secure Boot
System Lockdown
System Erase

I/O & Ports

Network options
2 x 1GE LOM + (optional) LOM Riser 2 x 1GE or 2x 10GE SFP+ or 2 x 10GE BaseT
Front ports: Video, 1 x USB 2.0, available USB 3.0, dedicated IDRAC Direct USB
Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port
Riser options also available include 2 x HH/HL or 1 x FH/HL
