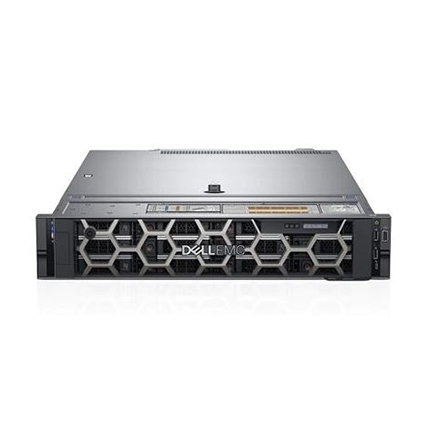

Dell PowerEdge R740 Silver 4110

Processor

Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor

Memory

24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max
Up to 12 NVDIMM, 192 GB Max
Supports registered ECC DDR4 DIMMs only

Storage controllers

Internal controllers: PERC H330, H730p, H740p, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID): H840
12Gbps SAS HBAs (non-RAID): External- 12Gbps SAS HBA (non-RAID), Internal- HBA330 (non-RAID)

Drive bays

Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 61TB or up to 8 x 3.5” SAS/SATA HDD max 96TB
Optional DVD-ROM, DVD+RW

Power supplies

Titanium 750W, Platinum
495W, 750W, 1100W, 1600W,
and 2000W

48VDC 1100W, 380HVDC 1100W, 240HVDC 750W (China/Japan)
Hot plug power supplies with full redundancy
Up to 6 hot plugs fans with full redundancy

Sizing

Form factor: Rack (2U)

Chassis depth: 715.5 mm

Embedded management

IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Express, Enterprise)
Quick Sync 2 wireless module optional

Bezel

Optional LCD bezel or security bezel

OpenManage™ Software

OpenManage Enterprise
OpenManage Essentials

OpenManage Mobile
OpenManage Power Center

Integrations and
connections

Integrations: Microsoft® System Center,
VMware® vCenter™, BMC Software
Connections: Nagios & Nagios XI,
Oracle Enterprise Manager,

HP Operations Manager,
IBM Tivoli Netcool/OMNIbus,
IBM Tivoli® Network Manager,
CA Network and Systems Management

Security

TPM 1.2/2.0 optional
Cryptographically signed frmware
Secure Boot

System Lockdown
Secure erase

I/O & Ports

Network daughter card options
4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
Front ports: Video, 2 x USB 2.0, available USB 3.0, dedicated IDRAC Direct Micro-USB
Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port
Video card: VGA
Riser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
