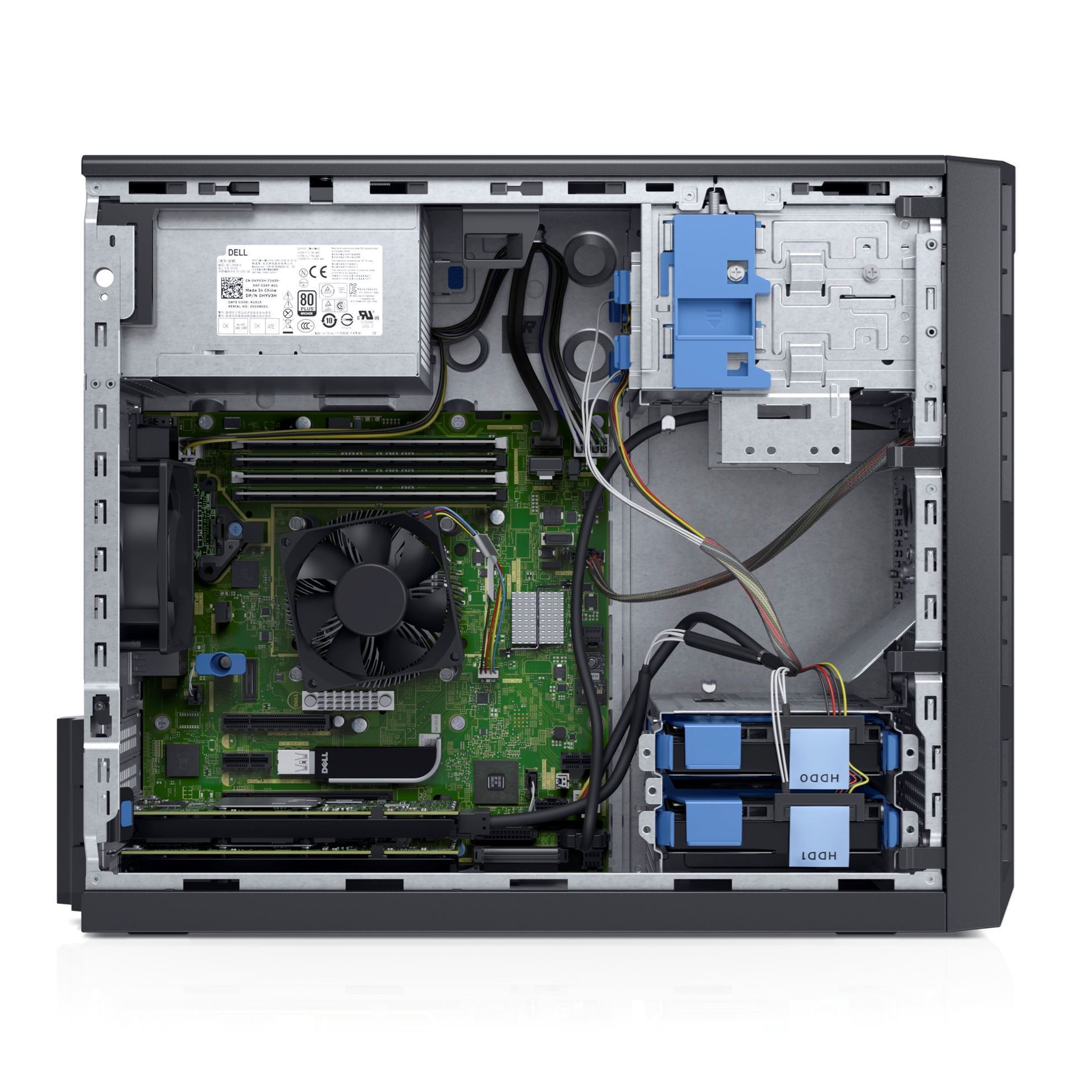

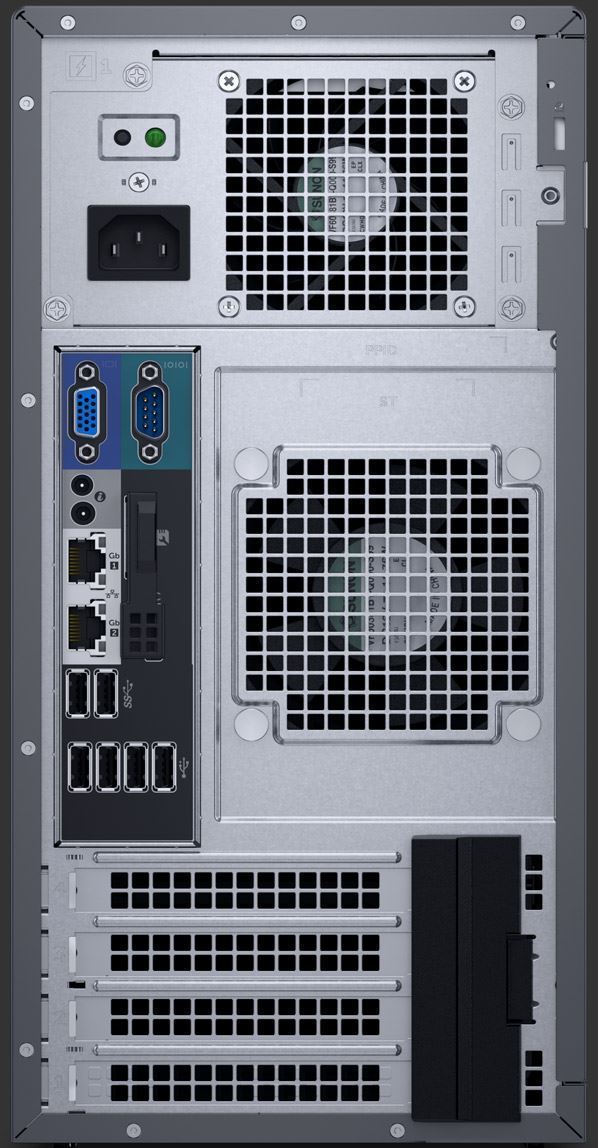

Dell PowerEdge T130 E3-1230 v6

Form factor

Mini tower server

Dimensions

H: 36.0 cm (14.17 in)
W: 17.5 cm (6.89 in)
D: 43.5 cm (17.12 in)

Processor

1 processor from the following product families:
• Intel® Xeon® processor E3-1200 v6 product family
• Intel Pentium®
• Intel CoreTM i3
• Intel Celeron®

Chipset

Intel C236

Operating system

Microsoft® Windows Server® 2012
Microsoft Windows Server 2012 R2, x64
Microsoft Windows Server 2016

Memory

Architecture: Up to 2400MT/s DDR4 DIMMs
Memory type: UDIMMs

Hypervisor support

Microsoft Windows Server with Hyper-V®
VMware vSphere ESXi®

Storage

3.5" Enterprise SATA 7.2k HDDs
3.5" nearline SAS 7.2k HDDs
3.5" 7.2k SATA entry drives

Drive bays

4 x 3.5" cabled HDDs

Slots

1x8 PCIe 3.0 (x16 connector)
1x4 PCIe 3.0 (x8 connector)
1x4 PCIe 3.0 (x8 connector)
1x1 PCIe 3.0 (x1 connector)

RAID controllers

PERC S130, PERC H330, PERC H730, PERC H830

Network controller

Broadcom® BCM5720

Communications

2 X 1GbE LOM

Power

290W cabled PSU

Management

Systems management:
• IPMI 2.0 compliant
• Dell OpenManage Essentials
• Dell OpenManage Mobile
• Dell OpenManage Power Center
Remote management:
• iDRAC8 with Lifecycle Controller, iDRAC8 Express
(default), iDRAC8 Enterprise (upgrade), 8GB vFlash
media (upgrade), 16GB vFlash media (upgrade)

Device access

8 total USB:
• Rear USB: 2 x USB 3.0 plus 4 x USB 2.0
• Front USB: 1 x USB 2.0 plus 1 x USB 3.0
