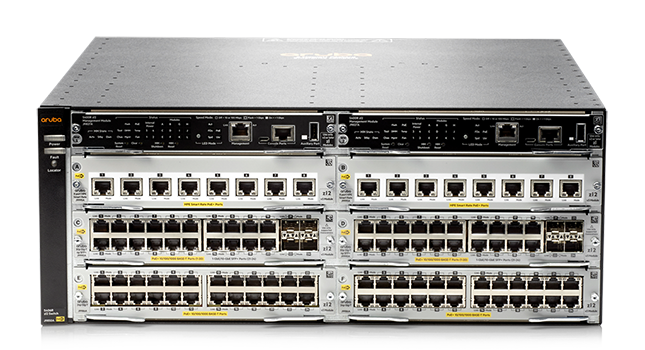

Switch Aruba 5406R 44GT PoE+/4SFP+(No PSU) v3 zl2 (JL003A)

Mã sản phẩm

Aruba 5406R 44GT PoE+/4SFP+(No PSU) v3 zl2 Switch (JL003A)

Included accessories

1 Aruba 5400R zl2 Management Module (J9827A)
1 Aruba 5406R zl2 Switch Fan Tray (J9831A)
1 Aruba 24-port 10/100/1000BASE-T PoE+ MACsec v3 zl2 Module (J9986A)
1 Aruba 20-port 10/100/1000BASE-T PoE+/4-port 1G/10GbE SFP+ MACsec v3 zl2 Module (J9990A)

I/O ports and slots

44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 open 10GbE SFP+ transceiver slots
4 open module slots
Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination

Power supplies

2 power supply slots
1 minimum power supply required (ordered separately)

Physical characteristics

Dimensions: 17.5(w) x 17.75(d) x 6.9(h) in (44.45 x 45.09 x 17.53 cm) (4U height)
Weight:  28.11 lb (12.75 kg)

Memory and processor

v3 Gigabit module: Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
v2 Gigabit module: ARM11 @ 450 MHz; Packet buffer size: 18 MB internal
v3 10G module: Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
v2 10G module: ARM11 @ 550 MHz; Packet buffer size: 18 MB internal
v3 40G module: Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
Management Module: Freescale P2020 dual core @ 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM

Mounting and enclosure

Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); Horizontal surface mounting; Wall mounting

Performance

1000 Mb Latency < 2.8 µs (FIFO 64-byte packets)
10 Gb Latency < 1.8 µs (FIFO 64-byte packets)
40 Gbps Latency < 1.5 µs (FIFO 64-byte packets)
Throughut up to 571.4 Mpps
Switching capacity: 960 Gbps
MAC address table size: 64000 entries

Environment

Operating temperature: 32°F to 131°F (0°C to 55°C); 0°C to 40°C with J8706A or J8707A modules installed
Operating relative humidity: 5% to 95%, noncondensing
Nonoperating/Storage temperature:-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity:15% to 95% @ 149°F (65°C), noncondensing
Altitude: up to 10,000 ft (3 km)
Acoustic: Power: 44 dB, Pressure: 31.7 dB ISO 7779, ISO 9296

Electrical characteristics

Frequency: 50/60 Hz
Achieved Miercom Certified Green Award Description: Chassis ships without power supplies. Two power supply slots are available; three different power supplies are available. See power supply products for additional specifications.
Maximum heat dissipation: 2450 BTU/hr (2584.75 kJ/hr), (max. non-PoE); 3700 BTU/hr (3903 kJ/hr) (max. using PoE)
Voltage: 100 - 127 / 200 - 240 VAC, rated

Safety

CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950

Emissions

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A

Management

HPE PCM+; HPE PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
