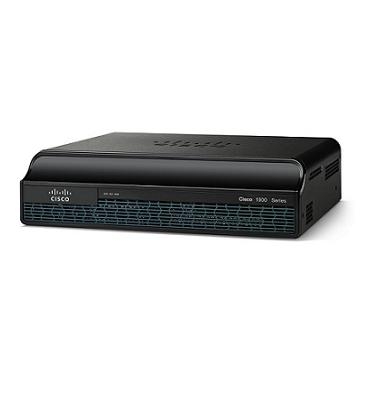

Thiết bị mạng C1941-SEC-SRE K9

C1941-SEC-SRE/K9 Specifications

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

C1941-SEC-SRE/K9

Product Type

Cisco 1941,SRE 300, and SEC license PAK bundle

Form Factor

Desktop - modular - 2U

Connectivity Technology

Wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Network / Transport Protocol

IPSec, L2TPv3

Routing Protocol

OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing

Remote Management Protocol

SNMP, RMON

Features

Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED)

Compliant Standards

IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag

DRAM Memory

2 GB

Flash Memory

256 MB (installed) / 8 GB (max)

LED Status Lights Indicators

Link activity, power

Connectivity Slots

Router Interfaces

1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Management : 1 x console - RJ-45
Management : 1 x console - mini-USB Type B
Serial : 1 x auxiliary - RJ-45
USB : 2 x 4 PIN USB Type A

Expansion Slot(s)

2 (total) / 2 (free) x HWIC
2 (total) / 1 (free) x CompactFlash Card
1 (total) / 1 (free) x Expansion Slot

Power Supply

Power Device

Power supply - internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Dimensions / Weight / Miscellaneous

Width

34.3 cm

Depth

29.2 cm

Height

8.9 cm

Weight

5.8 kg

Compliant Standards

CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, AS/NZS 3548, FCC, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438
