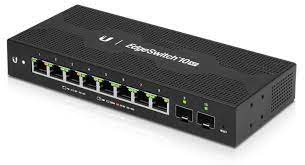

Unifi EdgeSwitch ES-10X

Product

ES-10X

Dimensions

207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54")

Weight

500 g (1.10 lb)

Total Non-Blocking Throughput

10 Gbps

Switching Capacity

20 Gbps

Forwarding Rate

14.88 Mpps

Max. Power Consumption

(Excluding PoE Output)

8W

Power Method

24VDC, 1A or

24V Passive PoE

Supported Voltage Range

9 - 30VDC

Power Supply

24VDC, 1A Power Adapter (Included) or

24V Passive PoE

LEDs Per Port

System

RJ45 Data Ports

SFP Data Ports

Status

Link/Speed/Activity

Link/Activity

Networking Interfaces

(8) 10/100/1000 Mbps RJ45 Ports

(2) 1 Gbps SFP Ports

Management Interface

Ethernet In-Band

Certifications

CE, FCC, IC

Rackmount

Yes*

ESD/EMP Protection

Air: ±24 kV, Contact: ±24 kV

Operating Temperature

-10 to 50° C (14 to 122° F)

Operating Humidity

5 to 95% Noncondensing

Shock and Vibration

ETSI300-019-1.4 Standard

 PoE (Port 8)

PoE Interface

24VDC Passive PoE (Pins 4, 5+; 7, 8-)

Max. Passive PoE Wattage per Port

15W

24V Passive PoE Voltage Range

24V
