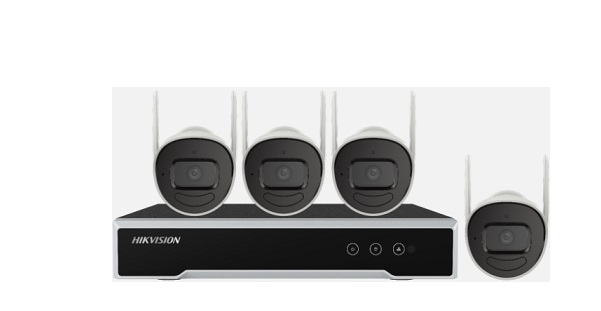

Bộ Kit camera IP Wifi 4.0 Megapixel HIKVISION NK44W0H(D)

Model

NK44W0H(D)

Camera

Focal Length

2.8 mm

Aperture

F1.6

Focus

Fixed

FOV

2.8 mm, horizontal FOV: 97°, vertical FOV: 52°, diagonal FOV: 114°

Lens Mount

M12

Camera

IR Range

Up to 30 m

Camera

Video Compression

Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Audio Bit Rate

64 Kbps (G.711 ulaw)/ 64 Kbps (G.711 alaw)/ 16Kbps (G.722.1)/ 16 Kbps(G.726)/ 32-160Kbps (MP2L2)/ 16-64Kbps (AAC)

Audio Sampling Rate

8 kHz/ 16 kHz

Environment Noise Filtering

Yes

Camera

Max. Resolution

2560 × 1440

Main Stream

50Hz: 20 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub-stream

50Hz: 20 fps (640 × 360)
60Hz: 20 fps (640 × 360)

Image Setting

Mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Auto/Scheduled/Day/Night

Camera

Alarm Trigger

Motion detection, exception

Protocols

TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour

General Function

Anti-flicker, heartbeat, password reset via e-mail

Client

iVMS-4200, Hik-Connect

Camera

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Audio I/O

1 Built-in mic

Reset Button

Yes

Camera

Power Supply

12 VDC ± 25%, 0.5 A, Ø 5.5 mm coaxial plug power

Consumption

≤ 6 W

Working Temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working Humidity

95% or less (non-condensing)

Dimension (W × D × H)

175.6 × 73.0 × 89.1 mm

Weight

330g

Camera

Camera Case Type

Bullet

Image Sensor

1/3 inch Progressive Scan CMOS

Min. Illumination

Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100.000 s

Day &Night

IR cut filter

WDR

DWDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Protection Level

IP66

Material

Front cover: plastic, camera body: metal

Wi-Fi Support

Yes

NVR

IP Video Input

4-ch

Incoming/Outgoing Bandwidth

50 Mbps/40 Mbps

HDMI/VGA Output

1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA simultaneous output

Audio Output

1-ch, RCA (linear, 1 KΩ)

NVR

Video Resolution

4 MP/3 MP/1080p/1.3 MP/720p

Synchronous Playback

4-ch

Capability

4-ch@4 MP (12 fps)/4-ch@1080p (25 fps)

NVR

Network Interface

1, RJ45 10/100M Ethernet interface

Network Protocol

IPv6, UPnP™, NTP, SADP, DHCP

Remote Connection

16

NVR

Frequency Band

2.4 GHz

Antenna Structure

2 × 2MIMO

Transmission Speed

144 Mbps

Transmission Standard

IEEE 802.11b/g/n

NVR

SATA

1

Capacity

Up to 6 TB capacity for each disk

USB Interface

Rear panel: 2 × USB 2.0

NVR

Power Supply

12 VDC

Consumption (without HDD and PoE off)

≤ 12 W

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

265 × 225 × 48 mm

Weight (without hard disk)

≤ 1.6 kg (3.5 lb.)

Kit

Accessories

Power cable: 4 × IPC power cables, 1 × NVR power cable
Ethernet cable: RJ45, Cat5e UTP, 1 m. Connects NVR and Switch
HDMI cable: 1 × HDMI cable, 2 m, black

Certification

FCC, CE

Weight (with package)

≤ 7 kg (15.4 lb.)
