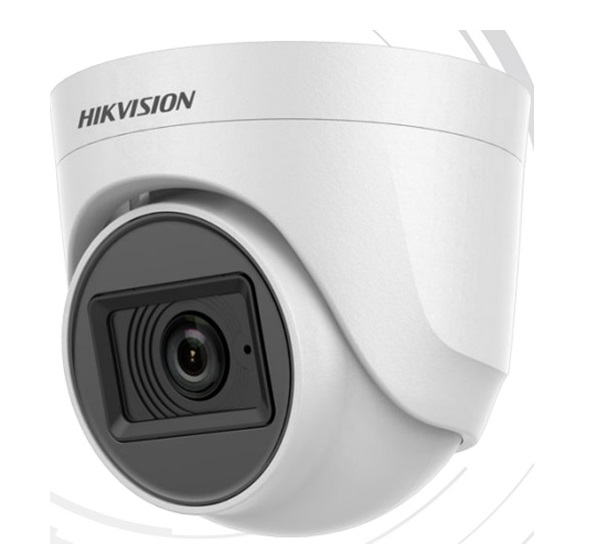

Camera Dome HD-TVI hồng ngoại 2.0 Megapixel HIKVISION DS-2CE76D0T-ITPFS

Camera

Image Senso

2 MP CMOS

Signal System

PAL/NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rate

TVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC

Min. illumination

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s

Lens

2.8 mm, 3.6 mm, 6 mm fixed lens

Field of View

2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°

Lens Mount

M12

Day & Night

ICR

WDR (Wide Dynamic Range)

Digital WDR

Audio

Built-in mic

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Menu

Image Mode

STD/HIGH-SAT

AGC

Yes

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

Auto/Manual

AE (Auto Exposure) Mode

DWDR/BLC/HLC/Global

Noise Reduction

2D DNR

Language

English

Function

Brightness, Sharpness, Mirror, Smart IR

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Power Supply

12 VDC ± 25%

Power Consumption

Max. 2.7 W

Material

Plastic

IR Range

Up to 20 m

Dimensions

Φ 84.6 mm × 78.9 mm (Φ 3.33' × 3.11')

Weight

Approx. 140.5 g (0.31 lb.)
