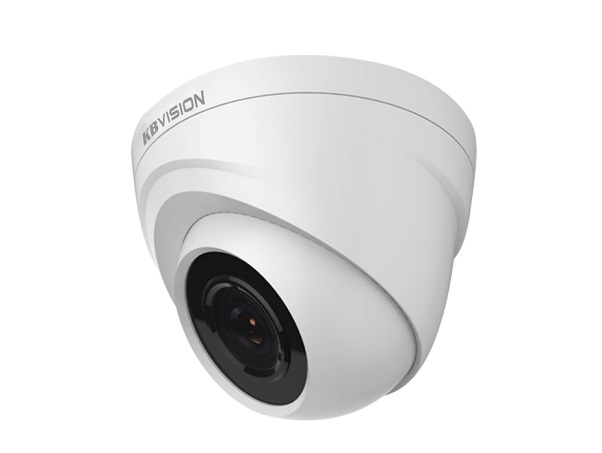

Camera Dome HDCVI hồng ngoại 4.0 Megapixel KBVISION KX-C2K12CP

Model

KX-C2K12CP

Camera

Image Sensor

1/3-inch Panasonic CMOS

Effective Pixels

2688(H)×1520(V), 4.0MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s

Minimum Illumination

0.03Lux/F2.0, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 20m (66feet)

IR On/Off Control

Auto / Manual

IR LEDs

12

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6 mm

Max Aperture

F2.0

Angle of View

H: 84°

Close Focus Distance

1100mm (800mm/ 2200mm)

DORI Distance

Detect

- DORI Definition: 25px/m (8px/ft)
- Distance:
   + 2.8mm: 63m(208ft);
   + 3.6mm: 80m(262ft);
   + 6mm: 117m(285ft).

Observe

- DORI Definition: 63px/m (19px/ft)
- Distance:
   + 2.8mm: 25m(83ft);
   + 3.6mm: 32m(105ft);
   + 6mm: 47m(154ft).

Recognize

- DORI Definition: 125px/m (38px/ft)
- Distance:
   + 2.8mm: 13m(42ft);
   + 3.6mm: 16m(53ft);
   + 6mm: 23m(77ft).

Identify

- DORI Definition: 250px/m (76px/ft)
- Distance:
   + 2.8mm: 6m(21ft);
   + 3.6mm: 8m(26ft);
   + 6mm: 12m(39ft).

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0˚-360˚; Tilt: 0˚-90˚; Rotation: 0˚-360˚

Video

Resolution

4MP (2560×1440)

Frame Rate

25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P

Video Output

1-channel BNC high denition video output / CVBS
video output (Can switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC/ HLC/ DWDR

WDR

DWDR

Gain Control

AGC

Noise Reduction

2D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Electrical

Power Supply

12V DC ±25%

Power Consumption

Max 3.2W (12V DC, IR on)

Environmental

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Lessthan 90% RH
Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Lessthan 90% RH

Ingress Protection &Vandal Resistance

IP67

Construction

Casing

Plastic

Dimensions

Φ93.4mm×79.4mm

Net Weight

0.28kg (0.62lb)

Gross Weight

0.35kg (0.77lb)
