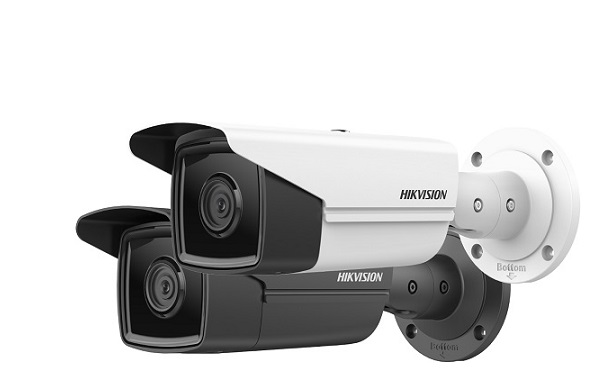

Camera IP Acusense 4.0 hồng ngoại 6.0 Megapixel HIKVISION DS-2CD2T63G2-2I

Model

DS-2CD2T63G2-2I

Camera

Image Sensor

1/2.8-inchProgressive Scan CMOS

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

P/N

P/N

Wide Dynamic Range

120 dB

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type

Fixed lens, 2.8, 4, and 6 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.6

DORI

DORI

2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m
4 mm: D: 90 m, O: 35 m, R: 18 m, I: 9 m
6 mm: D: 147 m, O: 58 m, R: 29 m, I: 15 m

Illuminator

Supplement Light Type

IR

Smart Supplement Light

Yes

IR Wavelength

850 nm

IR Range

Up to 60 m

Video

Max. Resolution

3200 × 1800

Main Stream

50 Hz: 20 fps (3200 × 1800)
          25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (3200 × 1800)
          30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub Stream

50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main stream supports

H.265+

Main stream supports

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G), ISAPI, SDK

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+


Image Parameters Switch

Yes

Image Settings

Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

SNR

≥ 52 dB

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-board Storage

Built-in memory card slot, support micro SD card, up to 256 GB

Hardware Reset

Yes

Event

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Face Detection

Yes

Deep Learning Function

Perimeter Protection

Line crossing detection, intrusion detection
Supports human and vehicle targets classification

General

Linkage Method

Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

Camera Material

Aluminum alloy body
Sun shield, IR cover: plastic

Camera Dimension

Ø105 mm × 293 mm

Package Dimension

386 mm× 156 mm × 155 mm

Camera Weight

Approx. 1065 g (2.4 lb.)

With Package Weight

Approx. 1560 g (3.5 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Web Client Language

33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, password reset via email, pixel counter

Firmware Version

V5.5.113

Software Reset

Yes

Power Consumption and Current

12 VDC, 0.67 A, max. 8.0W
PoE (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9.0 W

Power Supply

12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3

Power Interface

Ø5.5 mm coaxial power plug

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013)
