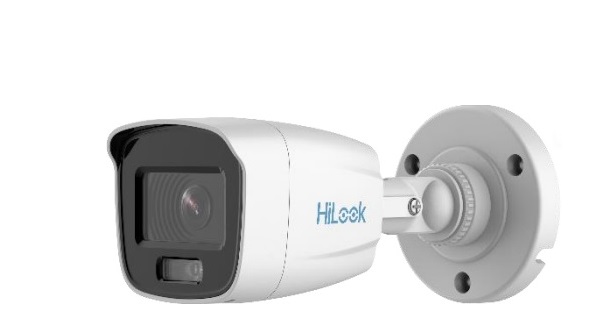

Camera IP COLORVU LITE 2.0 Megapixel HILOOK IPC-B129H

Model

IPC-B129H

Camera

Image Sensor

1/2.8-inch Progressive Scan CMOS

Min. Illumination

Color: 0.001 Lux @ (F1.0, AGC ON)

Shutter Speed

1/3s to 1/100,000s

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Slow Shutter

Yes

P/N

P/N

Wide Dynamic Range

Digital WDR

Lens

Lens Type & FOV

2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°

Aperture

F1.0

Lens Mount

M12

Aperture Type

Fixed

Depth of Focus

2.8 mm: 1.7 m to ∞
4 mm: 2.1 m to ∞

Illuminator

Smart Supplement Light

Yes

Supplement Light

White

White Light Range

Up to 30 m

Video

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

BaseLine Profile/Main Profile/High Profile

H.265 Type

Main Profile

Region of Interest (ROI)

1 fixed region for main stream

Network

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF

Client

HiLookVision PC Client, HiLookVision App

Web Browser

Plug-in required live view: IE8, IE9, IE10, IE11
Local service: Chrome 57.0+, Firefox 52.0+


Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Intelligent (Traditional Algorithm)

Basic Event

Motion detection, exception (illegal login)

General

Linkage Method

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

Web Client Language

English

General Function

Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Software Reset

Reset via web browser and client software

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection

Power Consumption and Current

12 VDC, 0.30 A, max. 3.6 W
PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5 W

Power Interface

Ø5.5 mm coaxial power plug

Material

Metal

Camera Dimension

57.7 × 62 × 152 mm

Package Dimension

172 × 104 × 80 mm

Camera Weight

Approx. 310 g (0.7 lb.)

With Package Weight

Approx. 430 g

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

Ingression protection: IP67 (IEC 60529-2013)
