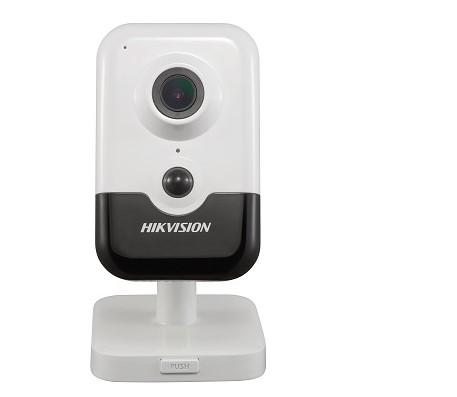

Camera IP Cube hồng ngoại 2.0 Megapixel HIKVISION DS-2CD2423G0-I

Camera IP HIKVISION Cube hồng ngoại 2.0 Megapixel DS-2CD2423G0-I

- Cảm biến hình ảnh: 1/2.7 inch Progressive Scan CMOS.

- Độ phân giải: 2.0 Megapixel (1920×1080@25fps).

- Ống kính cố định: 2.8mm.

- Độ nhạy sáng: 0.028Lux@F2.0.

- Tầm camera quan sát hồng ngoại: 10 mét.

- Cảm biến chính xác PIR phát hiện cơ thể người (10 mét).

- Chức năng quan sát Ngày và Đêm (IR-CUT).

- Chức năng chống ngược sáng WDR 120dB.

- Chức năng điều chỉnh độ lợi AGC.

- Chức năng giảm nhiễu số 3D-DNR.

- Khe cắm thẻ nhớ microroSD 128GB (max).

- Tích hợp âm thanh 2 chiều.

- Nguồn điện: 12VDC.

Đặc tính kỹ thuật

Model	DS-2CD2423G0-I
Camera
Image Sensor	1/2.7 inch Progressive Scan CMOS
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
Wide Dynamic Range	120dB
Day & Night	IR Cut Filter
Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type	2.8/4 mm
FOV	2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°,4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
Aperture	F2.0
Lens Mount	M12
Illuminator
IR Range	10 m
Wavelength	850nm
Video
Max. Resolution	1920 × 1080
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Video Compression	Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Main Profile/High Profile
H.265 Type	Main Profile
H.264+	Main stream supports
H.265+	Main stream supports
Scalable Video Coding (SVC)	Support H.264 and H.265 encoding
Audio
Environment Noise Filtering	Yes
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression	G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Network
Simultaneous Live View	Up to 6 channels
API	ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host	Up to 32 users, 3 levels: Administrator, Operator and User
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage	Support MicroSD/ SDHC/ SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Alarm Trigger	Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
Day/Night Switch	Day/Night/Auto/Schedule
DNR	3D DNR
Image Enhancement	BLC/3D DNR/HLC
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
PIR
PIR Angle	Horizontal: 90°, Vertical: 80°
PIR Range	10 m
Interface
Audio	1 built-in mic, 1 built-in speaker, mono sound
On-Board Storage	Built-in Micro SD/SDHC/SDXC slot, up to 128G
Hardware Reset	Yes
Communication Interface	1 RJ45 10M/100Mbps self-adaptive Ethernet port
Event
Basic Event	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event	Line crossing detection, intrusion detection, face detection
Face Detection	Yes
General
Linkage Method	Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
Firmware Version	5.6.3
Web Client Language	32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function	Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup And Operating Conditions	-10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
Power Supply	12VDC ± 25%, PoE (802.3af, class 3)
Power Consumption And Current	12VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power, PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
Dimension	102.8 mm × 65.2 mm × 32.6 mm (4.1' × 2.6' × 1.3')
Weight	128 g
