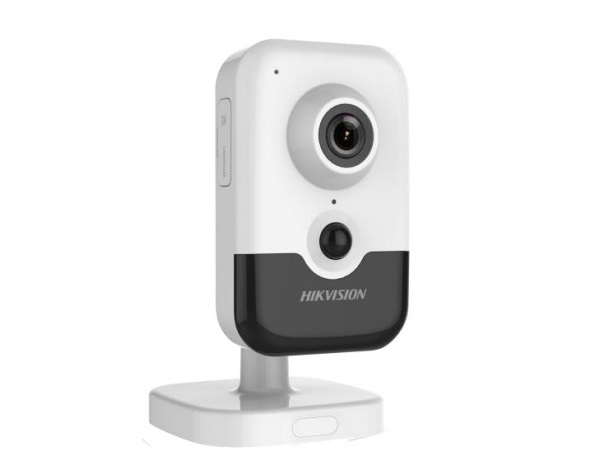

Camera IP Cube hồng ngoại không dây 5.0 Megapixel HIKVISION DS-2CD2455FWD-IW

Camera IP HIKVISION Cube hồng ngoại không dây 5.0 Megapixel DS-2CD2455FWD-IW

- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.

- Độ phân giải camera ip: 5 Megapixel.

- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264/MJPEG.

- Ống kính: 2.8mm (tùy chọn 4/6mm).

- Tầm quan sát hồng ngoại: 10 mét.

- Độ nhạy sáng: Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux với IR.

- Hỗ trợ kết nối wifi không dây.

- Chức năng cảm biến hồng ngoại chuyển động của người PIR sensor (Passive Infrared sensor).

- Tính năng chống ngược sáng thực 120dB WDR.

- Chức năng lọc nhiễu kỹ thuật số 3D DNR (Dynamic Noise Reduction).

- Tính năng thông minh: hỗ trợ tính năng phát hiện vượt hàng rào ảo, phát hiện xâm nhập, phát hiện di dời vật thể, phát hiện hành lý vô chủ.

- Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…

- Hỗ trợ dịch vụ Hik-Connect.

- Hỗ trợ khe cắm thẻ nhớ SD/SDHC/SDXC dung lượng lên đến 128GB.


Đặc tính kỹ thuật

Model	DS-2CD2455FWD-IW
Camera
Image Sensor	1/2.8 inch Progressive Scan CMOS
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
Day & Night	IR Cut Filter
Digital Noise Reduction	3D DNR
WDR	120dB
3-Axis Adjustment	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal length	2.8/4/6 mm
Aperture	F2.0
FOV	Horizontal field of view: 93° Vertical field of view: 51° Diagonal field of view: 108°
Lens Mount	M12
IR
IR Range	10 m
Wavelength	850nm
PIR
Angle	Horizontal: 90°, Vertical: 80°
PIR Range	10 m
Compression Standard
Video Compression	Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Yes
H.265 Type	Main Profile
H.265+	Yes
Video Bit Rate	32 Kbps to 16 Mbps
Audio Compression	G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Smart Feature-set
Behavior Analysis	Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Face Detection	Yes
Region of Interest	Support 1 fixed region for main stream and sub-stream separately
Max. Resolution	2560 × 1920
Main Stream	50Hz: 20 fps (2560 × 1920, 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (2560 × 1920), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream	50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240)
Third Stream	50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Setting	Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Image Enhancement	BLC/3D DNR
Day/Night Switch	Auto/Schedule
Network
Network Storage	Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6
General Function	One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API	ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View	Up to 6 channels
	Up to 32 users
User/Host	3 levels: Administrator, Operator and User
Client	iVMS-4200, Hik-Connect, iVMS-5200
Web Browser	IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio	1 built-in mic, 1 built-in speaker, mono sound
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128G
SVC	Support H.264 and H.265 encoding
Reset Button	Yes
Wi-Fi
Wireless Standards	IEEE 802.11b/g/n
Frequency Range	2.412 GHz to 2.4835 GHz
Channel Bandwidth	20M/40M
Protocols	802.11b: DQPSK, DBPSK, CCK 802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
Security	WPA, WPA2
Transfer Rates	11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range	50 m
Audio
Environment Noise Filtering	Yes
Audio Sampling Rate	16 kHz
General
Operating Conditions	-10 °C to +40 °C (14 °F to +104 °F) Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 20%, PoE (802.3af, class 3)
Power Consumption and Current	12 VDC, 0.47A, max. 7W PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W
Interface Protection	TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material	Plastic
Dimensions	102.8× 65.2 × 32.6 mm
Weight	Camera ip: Approx. 128 g
