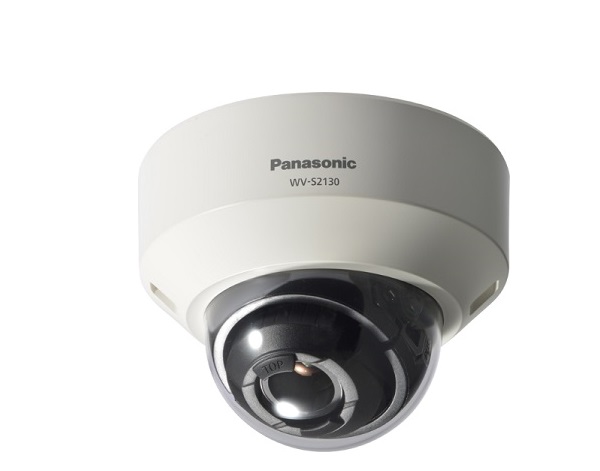

Camera IP Dome 2.0 Megapixel PANASONIC WV-S2130

Model

WV-S2130

Camera

Image Sensor

Approx. 1/3 type MOS image sensor

Minimum Illumination

Color: 0.012 lx, BW: 0.01 lx
 (F1.6, Maximum shutter: Off (1/30s), AGC: 11)
Color: 0.0008 lx, BW: 0.0007 lx
 (F1.6, Maximum shutter: max. 16/30s, AGC: 11)

White Balance

AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)

Shutter Speed

1/30 Fix to 1/10000 Fix
*1/30 Fix to 2/120 Fix is available during 30 fps mode only.
*1/60 Fix is available during 60 fps mode only

Intelligent Auto

On/ Off

Super Dynamic

On/ Off, the level can be set in the range of 0 to 31.

Dynamic Range

144 dB (Super Dynamic: On)

Adaptive Black Stretch

The level can be set in the range of 0 to 255.

Back light compensation/ High light compensation

BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off)

Fog compensation

On/ Off (only when Intelligent auto/ auto contrast adjust: Off)

Maximum gain (AGC)

The level can be set in the range of 0 to 11.

Day/ Night (Electrical)

Off/ On

Digital Noise Reduction

The level can be set in the range of 0 to 255.

Video Motion Detection (VMD)

On/ Off, 4 areas available

Intelligent VMD (i-VMD)

Type 4 *Bundled License

Stabilizer

On/ Off (available only in the 30 fps mode)

Privacy Zone

On/ Off (up to 8 zones available)

Image rotation

0°/ 90°/ 180°/ 270°

Camera Title (OSD)

On/ Off Up to 20 characters (alphanumeric characters, marks)

Focus Adjustment

Auto back focus/ Manual

Lens

Focal length

2.8 - 10 mm {1/8 inches - 13/32 inches}

Zoom ratio

3.6x (Motorized zoom/ Auto Focus)

Angular Field of View

- [16 : 9 mode] Horizontal: 30° (TELE) – 110° (WIDE)
                         Vertical: 17° (TELE) – 59° (WIDE)
- [4 : 3 mode] Horizontal : 25° (TELE) – 90° (WIDE)
                       Vertical : 19° (TELE) – 66° (WIDE)

Maximum Aperture Ratio

1 : 1.6 (WIDE) – 1 : 3.4 (TELE)

Focusing Range

0.3 m {11-13/16 inches} – ∞

Adjusting Angle

Adjusting Angle

Horizontal : -240 to +120°, Vertical : ±85°, Yaw : ±100°

Browser GUI

Camera Control

Brightness, AUX On/Off

Audio

Mic (Line) Input: On/Off
Volume adjustment : Low/ Middle/ High
Audio Output: On/Off
Volume adjustment: Low/ Middle/ High

GUI/ Setup Menu Language

English, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese

Network

Network IF

10Base-T/ 100Base-TX, RJ45 connector

Resolution H.265/ H.264/ JPEG (MJPEG)

- 2 Megapixel [16 : 9] (30/60 fps)
 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180
- 3 Megapixel [4 : 3] (30 fps)
  2,048 x 1,536/ 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/ 320 x 240

H.265/H.264

- Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort
- Transmission Type: Unicast/ Multicast

JPEG

Image Quality: 10 steps

Smart Coding

- Smart Facial Coding: On (Smart Facial Coding*)/ On (Auto VIQS)/ Off
*Smart Facial Coding is only available with Stream(1).
- GOP (Group of pictures): On (Advanced)*/ On (Mid)/ On (Low)/ Off
*On(Advanced) is only available with H.265.

Audio Compression

G.726 (ADPCM): 16 kbps/ 32 kbps
G.711: 64 kbps
AAC-LC: 64 kbps/ 96 kbps/ 128 kbps

Audio transmission mode

Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex/ Interactive (Full duplex)

Supported Protocol

- Pv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
- IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ

No. of Simultaneous Users

Up to 14 users (Depends on network conditions)

Mobile Terminal Compatibilit

iPad, iPhone, Android mobile terminals

Alarm

Alarm Source

VMD alarm, Command alarm, Audio detection alarm

Alarm Actions

E-mail notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic alarm protocol output

Input/ Output

Monitor Output (for adjustment)

VBS: 1.0 V [p-p] / 75 Ω, composite, ø3.5 mm mini jack
An NTSC or PAL signal can be outputted from camera

Built-in microphone

Nondirectional electret condenser microphone

General

Safety

UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1

EMC

FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024

Power Source and Power Consumption

PoE (IEEE802.3af compliant) Device: DC48V/ 110 mA, Approx. 5.3 W (Class 0 device)

Ambient Operating Temperature

-10 °C to +50 °C (14 °F to 122 °F)

Ambient Operating Humidity

10 to 90 % (no condensation)

Dimensions

ø129.5 mm x 101 mm (H) {ø5-3/32 inches x 3-31/32 inches (H)}
Dome radius 40 mm {1-9/16 inches}

Mass (approx.)

Approx. 560 g {1.23 lbs}

Finish

Main body: ABS resin, sail white
Dome section: Clear acrylic resin
