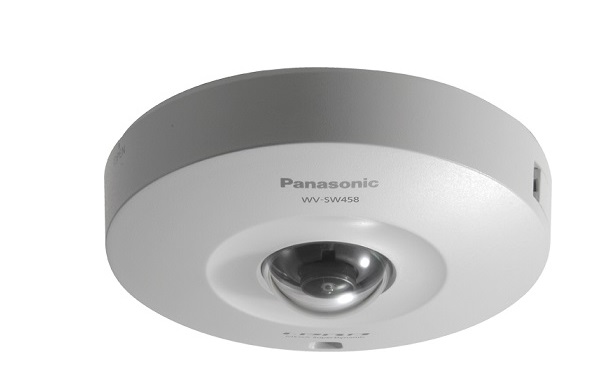

Camera IP Dome 3.0 Megapixel PANASONIC WV-SW458MA

Model

WV-SW458MA

Camera

Image Sensor

1/3 type MOS image sensor

Effective Pixels

Approx. 3.1 mega pixels

Scanning Mode

Progressive

Scanning Area

4.51 mm (H) × 3.38 mm (V) {3/16 inches (H) x 1/8 inches (V)}

Minimum Illumination

Color: 1.5 lx (F2.4, Auto slow shutter: Off  (1/30s), Gain: On (High))
Color: 0.1 lx (F2.4, Auto slow shutter: Max. 16/30s, Gain: On(High))
BW: 1.2 lx (F2.4, Auto slow shutter: Off (1/30s), Gain: On (High))
BW: 0.08 lx (F2.4, Auto slow shutter: Off (16/30s), Gain: On (High))

White Balance

AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)

Light Control Mode

Indoor scene (50 Hz/ 60 Hz)/ ELC

Shutter Speed

With Super Dynamic On ELC (1/30 s)
With Super Dynamic Off
ELC (1/30 s), ELC (3/100 s), ELC (3/120 s), ELC (2/100 s), ELC (2/120 s), ELC (1/100 s), ELC (1/120 s), ELC (1/250 s), ELC (1/500 s), ELC (1/1,000 s), ELC (1/2,000 s), ELC (1/4,000 s), ELC (1/10,000 s)

Super Dynamic

On/ Off

Dynamic Range

52dB typ. (only when Super Dynamic : On)

Adaptive Black Stretch

On/ Off (only when Super Dynamic: Off)

AGC

On (High)/ On (Mid)/ On (Low)/ Off

Electronic Sensitivity UP

Off (1/30 s), Max. 2/30 s, Max. 4/30 s, Max. 6/30 s, Max. 10/30 s, Max. 16/30 s

Day & Night (Electrical)

Off / Auto

Digital Noise Reduction

High/ Low

Video Motion Detection

On/ Off, 4 areas available

Auto mode

Auto pan/ Preset sequence
Auto mode can only be used when the image type is Quad PTZ or Single PTZ.

Self return

10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min
Self return can only be used when the image type is Quad PTZ or Single PTZ.

Privacy Zone

On/ Off (up to 4 zones available)

VIQS

On/ Off (up to 2 areas available)
However, the VIQS function is not supported when 'Quad PTZ', Single PTZ' or 'Quad streams' are selected

Camera Title (OSD)

Up to 20 characters (alphanumeric characters, marks), On/Off However, you can specify characters to be displayed on each of the four screens when 'Quad streams' is selected.

Lens

Focal Length

0.837 mm

Angular Field of View

Horizontal: 182°, Vertical: 176°

Maximum Aperture Ratio

1 : 2.4 (Fixed)

Focusing Range

0.3 m - ∞

Browser GUI

Camera Control

Pan/Tilt/Digital Zoom, Preset, Auto Mode, Self Return, Fisheye Control, Brightness, AUX On / Off

Display Mode

Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available

Digital Zoom

1x, 2x, 4x controlled by browser GUI (Panorama, Double Panorama, Fisheye mode)
1x - 4x (Quad PTZ or Single PTZ mode

Camera Title

Up to 20 alphanumeric characters

Clock Display

Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)

Alarm Control

Reset

One Shot Capture

A still picture will be displayed on a newly opened window.

Audio

- Mic (Line) Input: On/ Off
Volume adjustment: Low/ Middle/ High
- Audio Output: On/ Off
Volume adjustment: Low/ Middle/ High

SD Memory Data Download

Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded

GUI/Setup Menu Language

English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

System Log

Up to 100 (Internal), Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs

Supported OS

Microsoft® Windows® 8.1, Microsoft® Windows® 8, Microsoft® Windows® 7, Microsoft® Windows Vista®, Microsoft® Windows® XP SP3

Supported Browser

Windows® Internet Explorer®11 (32 bit), Windows® Internet Explorer®10 (32 bit), Windows® Internet Explorer® 9 (32 bit), Windows® Internet Explorer® 8 (32 bit), Windows® Internet Explorer® 7 (32 bit), Microsoft® Internet Explorer® 6 SP3

Network

Network IF

10Base-T / 100Base-TX, M12 connector (female)

Audio Compression

G.726 (ADPCM) 32 kbps/ 16 kbps, G.711 64 kbps

Audio Mode

Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex)

Authentication for Audio

Level 1 only/ Level 2 higher/ All users

Total Bit Rate

64/ 128/ 256/ 384/ 512/ 768/ 1,024/ 2,048/ 4,096/ 8,192 kbps/ Unlimited

Supported Protocol

- IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP
- IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP

FTP Client

Alarm image transmission, FTP periodic transmission
(When the FTP transmission is failed, backup on an optional SD memory card is available.)

No. of Simultaneous Users

Up to 14 users (Depends on network conditions)

SDXC/SDHC/SD Memory Card (Option)

H.264 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC
JPEG recording: Manual REC/ Alarm REC (Post)/ Backup upon network failure
Compatible SD (SDHC/SDXC) card: Panasonic 1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB** model
*SDHC card, ** SDXC card (except miniSD card and microSD card)

Cellular Phone Compatibility

JPEG image, AUX control (by access level)

Mobile Terminal Compatibility

iPad, iPhone, iPod touch (iOS 4.2.1 or later) Android mobile terminals

Alarm

Alarm Source

3 terminals input, VMD, Command alarm

Alarm Actions

SDXC/SDHC/SD memory recording, E-mail notication, Indication on browser, FTP image transfer, Panasonic protocol output, HTTP notification

Alarm Log

With SDXC/SDHC/SD memory card: 5,000 logs, without SDXC/SDHC/SD memory card: 1,000 logs

Schedule

Alarm/ VMD/ Access permission/ H.264 recording

Input/Output

Microphone/Line Input

ø3.5 mm monaural mini jack, Input impedance: Approx. 2 kΩ
- For microphone input: Applicable microphone: Plug-in power type, Supply voltage: 2.5 V ±0.5 V
- For line input: Input level: Approx. –10 dBV

Audio Output

ø3.5 mm stereo mini jack (monaural output),
Output impedance: Approx. 600 Ω, Line leve

External I/O Terminals

ALARM IN 1, ALARM IN 2(ALARM OUT), ALARM IN 3(AUX OUT) (x1 for each)

General

Mounting method

Ceiling/ Wall

Power Source and Power Consumption

DC12V, PoE (IEEE802.3af compliant)/ DC*12 V: 540 mA/ 6.5 W/ PoE 48 V: 125 mA / 6.0 W (Class 2 devices)
*FOR UL LISTED MODEL(S), ONLY CONNECT DC12V CLASS 2 POWER SUPPLY.

Ambient Operating Temperature

-40 °C to +50 °C (-40 °F to 122 °F)

Ambient Operating Humidity

Less than 90 % (no condensation)

Water and Dust Resistance

IP66, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X complian

Shock Resistance

Compliant with 50J (IEC 60068-2-75)/IK10 (IEC 62262)

Railway Application

EN50155-T3, EN50121, ECE-R10, EN45545, EN50498

Dimensions

ø154 mm x 50.5 mm (H) {ø6-1/16 inches x 2 inches (H)}

Mass (approx.)

Approx. 0.8 kg {1.76 lbs} (including the camera attachment)

Finish

Main body: Aluminum die cast, light gray
Dome section: Clear polycarbonate resin
