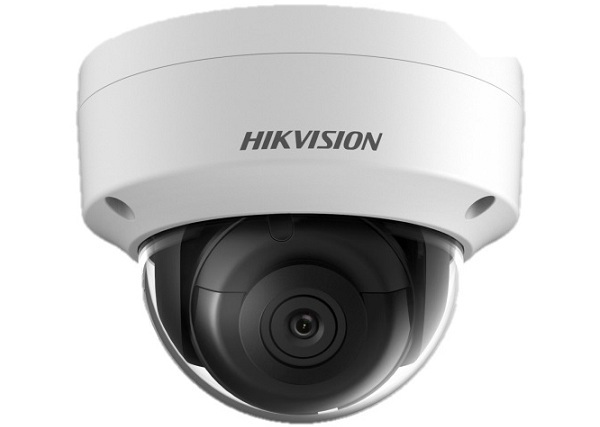

Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD2125FWD-I

Camera IP HIKVISION Dome hồng ngoại 2.0 Megapixel DS-2CD2125FWD-I
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Chuẩn nén hình ảnh: H.265+/ H.265/ H.264+/ H.264/ MJPEG4.
- Độ phân giải: 2.0 Megapixel.
- Hỗ trợ khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng lên đến 128GB.
- Tầm quan sát hồng ngoại: 30 mét.
- Chức năng chống ngược sáng Digital WDR (Wide Dynamic Range).
- Tính năng thông minh: Chống đột nhập vào khu vực cấm. Báo động khi vượt hàng rào ảo, phát hiện di dời vật thể, phát hiện hành lý vô chủ, phát hiện khuôn mặt.
- Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: 12VDC.

Đặc tính kỹ thuật

Model	DS-2CD2125FWD-I
Camera
Image Sensor	1/2.8 inch Progressive Scan CMOS
Min. Illumination	Color: 0.005 lux @ (F1.2, AGC ON), 0 lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Support
Lens	2.8 mm, horizontal field of view: 108° 4 mm, horizontal field of view: 86.4°
Lens Mount	M12
Iris	F1.6
Day & Night	IR cut filter
Wide Dynamic Range	120dB
Digital noise reduction	3D-DNR
3-Axis Adjustment (bracket)	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Compression Standard
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Support
H.265 Type	Main Profile
H.265+	Support
Video bit rate	32 Kbps to 16 Mbps
Max. Image Resolution	1920 x 1080
Main Stream	50Hz: 50fps (1920 x 1080, 1280 x 960, 1280 x 720) 60Hz: 60fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream	50Hz: 25fps (640 x 360, 352 x 288) 60Hz: 30fps (640 x 360, 352 x 240)
Third Stream	50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement	BLC/3D DNR
Image Settings	Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
ROI (Region of Interest)	Support 1 fixed region for mainstream and sub stream separately
Network
Network Storage	Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS, SMB/CIFS), ANR
Alarm Trigger	Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function	One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark IP Address Filter
Interface
Communication Interface	1 RJ45 10M/100Mbps Ethernet interface
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Smart Feature-set
Behavior Analysis	Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Line Crossing Detection	Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported
Intrusion Detection	Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported
Object Removal Detection	Objects removed from the pre-defined region, such as the exhibits on display
Unattended Baggage Detection	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Face Detection	Human face appears in the image can be detected and trigger linkage method
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply	DC 12V ± 25%, 5W PoE(802.3a, class 3), 6.5W
Power Consumption	Max. 12W
Impact Protection	IK10
Weather Proof	IP67
IR Range	30 meters
Dimensions	Φ111 x 82.4 mm
Weight	500g
