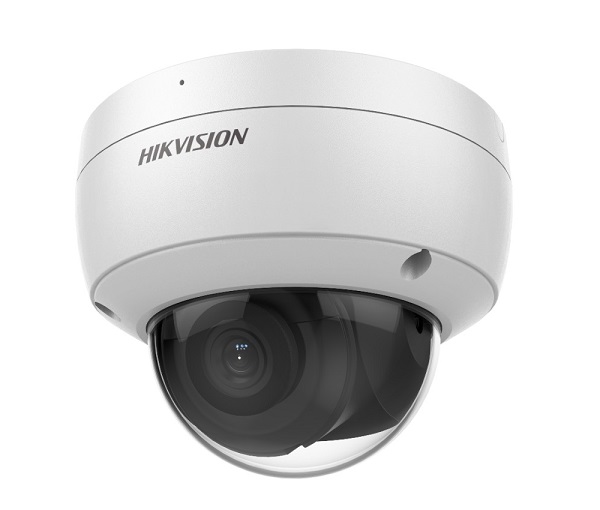

Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD2126G2-ISU

Camera IP HIKVISION Dome hồng ngoại 2.0 Megapixel DS-2CD2126G2-ISU

- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.

- Ống kính: 2.8 mm/4 mm/6 mm fixed lens.

- Chuẩn nén hình ảnh: H.265, H.264.

- Tầm quan sát hồng ngoại: 30 mét

- Chức năng chống ngược sáng 120dB WDR.

- Chức năng bù ngược sáng BLC.

- Chức năng giảm nhiễu số 3D DNR.

- Chức năng chống sáng chói HLC.

- Chống báo động giả bằng cách phân biệt được người, xe với các yếu tố gây báo động giả khác (như vật nuôi, lá cây,...).

- Khe cắm thẻ nhớ micro SD/SDHC/SDXC lên đến 256Gb.

- Tích hợp microphone.

Đặc tính kỹ thuật

Model	DS-2CD2126G2-ISU
Camera
Image Sensor	1/2.8 inch progressive scan CMOS
Min. Illumination	Color: 0.002 Lux @ (F1.4, AGC ON)
Shutter Speed	1/3 s to 1/100, 000 s
Slow Shutter	Yes
Day &Night	IR cut filter
Angle Adjustment	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Lens	2.8 mm, 4 mm, 6 mm
Aperture	F1.4
Lens Mount	M12
Aperture Type	Fixed
IR
IR Range	Up to 30 m
Wavelength	850 nm
Smart Supplement Light	Yes
Supplement Light	IR
Video
Max. Resolution	1920 × 1080
Video Compression	Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate	32 Kbps to 8 Mbps
Scalable Video Coding (SVC)	Yes
Region of Interest (ROI)	1 fixed regions for each stream
Audio
Environment Noise Filtering	Yes
Audio Compression	G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/ MP3
Day/Night Switch	Day, Night, Auto, Schedule
Image Setting	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Image Enhancement	BLC, HLC, 3D DNR
Image Parameters Switch	Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth Streaming	Yes
API	ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Simultaneous Live View	Up to 6 channels
Intelligent
Basic Event	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
Face Capture	Yes
Premier Protection	Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Interface
Alarm	1 alarm input, 1 alarm output (max. 12 VDC @30 mA)
Built-in Microphone	Yes
Audio	1 input (line in), 1 output (line out)
On-board Storage	Built-in micro SD slot, up to 256 GB
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
General
General Function	Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Power Supply	12 VDC ± 25%, reverse polarity protection PoE: 802.3af, class 3
Power Consumption and Current	12 VDC, 0.4 A, max. 4.8 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6 W
Ingress Protection	IP66, IK10
Material	Metal upper cover and base
Dimensions	Ø 121 × 92 mm
Weight	585g
