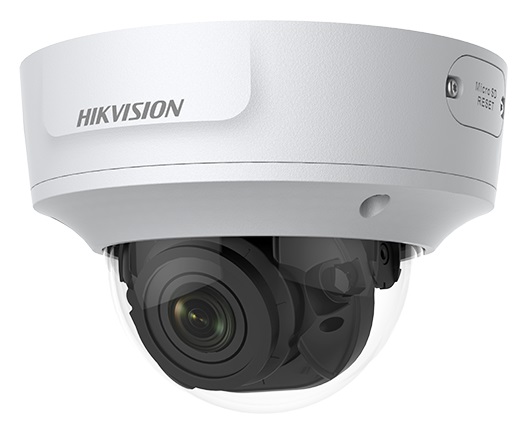

Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD2723G1-IZ

Camera

Image Sensor

1/2.8' Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120dB

3-Axis Adjustment

Pan: 0°to 355°, tilt: 0°to 75°, rotate: 0°to 355°

Lens

Focal length

2.8 to 12 mm

Lens Type

Motorized

Aperture

F1.6

Focus

Auto

FOV

Horizontal FOV: 110°to 31°
Vertical FOV: 58°to 18°
Diagonal FOV: 136°to 36°

Lens Mount

Φ14

IR

IR Range

Up to 30 m

Wavelength

850nm

Compression Standard

Video Compression

Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16 Mbps

Smart Feature-set

Behavior Analysis

Line crossing detection, intrusion detection

Face Detection

Yes

Region of Interest

1 fixed region for main stream and sub-stream


Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC/3D DNR/HLC

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Network

Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function

One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Firmware Version

V5.5.80

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users
3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Video Output

1Vp-p Composite Output(75Ω) (For adjustment only)

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

SVC

H.264 and H.265 encoding

Reset Button

Yes

General

Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, terminal block
PoE (802.3af, class 3)

Power Consumption and Current

12 VDC, 0.8A, max. 10W
PoE (802.3af, 36V to 57V), 0.35A to 0.2A, max. 12W

Protection Level

IP67, IK10

Material

Metal

Dimensions

Camera: Φ 153.3 × 111.6mm (Φ 6' × 4.4')

Weight

Camera: Approx. 835g (1.8 lb.)
With Package: Approx. 1305g (2.9 lb.)
