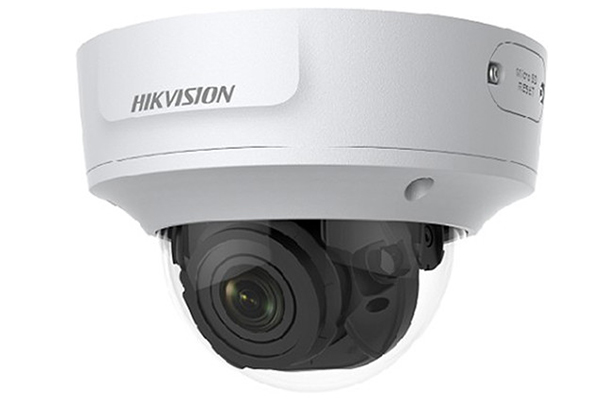

Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD2726G1-IZS

Model

DS-2CD2726G1-IZS

Camera

Image Sensor

1/2.8' Progressive Scan CMOS

Min. Illumination

Color: 0.005 Lux @ (F1.2, AGC ON),0.007 Lux @ (F1.4, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

120dB

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Focus

Auto

Lens Type

2.8 mm to 12 mm

FOV

Horizontal FOV: 113° to 32°, vertical FOV: 59° to 18°, diagonal FOV: 137° to 37°

Aperture

F1.4

Lens Mount

Φ14

Aperture Type

Fixed

Illuminator

IR Range

Up to 30 m

Wavelength

850 nm

Video

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Main Profile/High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

H.265 encoding and H.264 encoding support

Region Of Interest (ROI)

Support 1 fixed region for main stream and sub stream separately

Protection

IK10，IP67 (If the camera is installed outdoor, the bracket DS-1253ZJ-L should be used together with other pendant mounting bracket or wall mounting bracket to reduce IR reflective in the rainy day)

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8kHz/16kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

Network

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

User/Host

Up to 32 users,3 levels: Administrator, Operator and User

Network Storage

Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

Plug-in required live view:,IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+

Alarm Trigger

Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error


Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In(-S)

DNR

3D DNR

Image Enhancement

BLC/3D DNR

Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Interface

Audio

1 audio input (line in), 1 audio output (line out), mono sound

Alarm

1 alarm input, 1 alarm output

On-Board Storage

Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Event

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification

General

Firmware Version

V5.5.63

General Function

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering

Startup And Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)

Power Consumption And Current

12 VDC, 0.9 A, max. 11 W, PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max. 12.9 W

Dimension

Φ 153.3 × 111.6 mm (Φ 6' × 4.4')

Weight

Camera: 890 g (2 lb.), With package: 1300 g (2.9 lb.)
