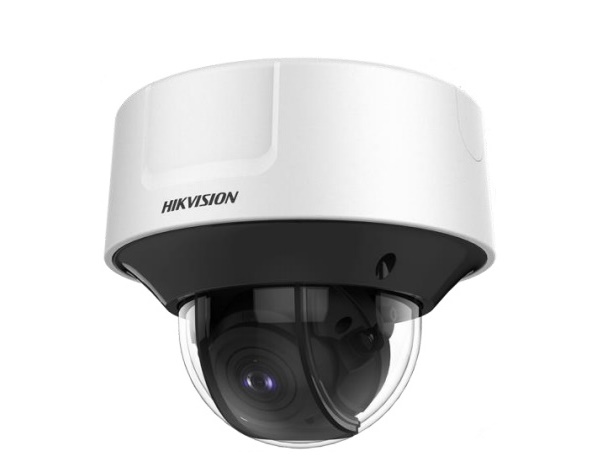

Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD5526G1-IZHS (8-32 mm)

Model

DS-2CD5526G1-IZHS

Camera

Image Sensor

1/1.8 inch Progressive Scan CMOS

Min. Illumination

Color: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

WDR

140 dB

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

IR Range

Up to 50 m

Lens

Lens Type

Motorized lens, 8 to 32 mm

FOV

8 to 32 mm, horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°

Focus

Auto, semi-auto, manual

Aperture

8 to 32 mm: F1.6, Constant F1.6 throughout the zoom range

Auto-Iris

P-iris

Lens Mount

Integrated

Video

Max. Resolution

1920 × 1080

Video Stream

5 defined streams and up to 5 custom stream

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

Scalable Video Coding (SVC)

H.265 and H.264 support

Audio

Environment Noise Filtering

Yes

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Simultaneous Live View

Up to 20 channels

API

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome

User/Host

Up to 32 users, 3 levels: administrator, operator and user


Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Target Cropping

Yes

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS, distortion correction

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

Alarm

1 input, 1 output (max. 24 VDC/VAC, 1A max.)

Audio

1-ch 3.5 mm input (line in), 1-ch 3.5 mm output (line out), mono

Video Output

1Vp-p composite output (75 Ω/CVBS), only for adjustment

Communication

1 RJ45 10M/100M/1000M Ethernet port

On-board storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Smart Feature-Set

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection, up to 4 lines configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable
Face detection: detects faces and upload images
Scene change detection, audio exception detection, defocus detection

Statistics

Counting

General

General Function

Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening

Power Supply

12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3at, class 4)

Startup and Operating Conditions

-40°C to 65°C (-40°F to 149°F), humidity 95% or less (non-condensing)

Heater

Yes

Material

Metal

Protection

IP67, IK10

Dimensions

Φ162 × 140.3 mm

Weight

1.4kg
