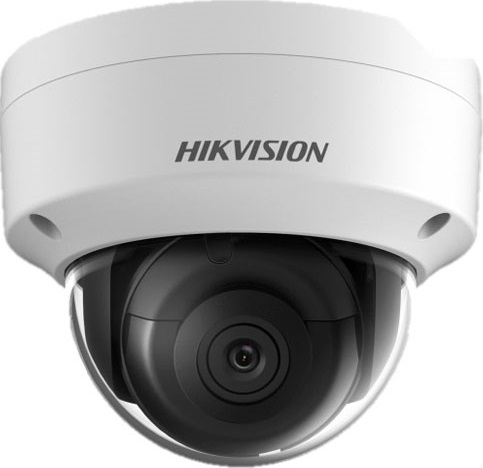

Camera IP Dome hồng ngoại 3.0 Megapixel HIKVISION DS-2CD2135FWD-I

Model

DS-2CD2135FWD-I

Camera

Image Sensor

1/2.8 inch Progressive Scan CMOS

Min. Illumination

Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Support

Lens

2.8 mm, horizontal field of view: 98°
4 mm, horizontal field of view: 78.7°
6 mm, horizontal field of view: 48°

Lens Mount

M12

Iris

F1.6

Day &Night

IR cut filter

DNR

3D DNR

Wide Dynamic Range

120dB

3-Axis Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Compression Standard

Video Compression

Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Support

H.265 Type

Main Profile

H.265+

Support

Video Bit Rate

32 Kbps to 16 Mbps


Max. Resolution

2048 × 1536

Main Stream

50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280×720)
60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280×720)

Sub Stream

50Hz: 25fps (640 × 360, 352 × 288)
60Hz: 30fps (640 × 360, 352 × 240)

Third Stream

50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)

Image Enhancement

BLC/3D DNR

Image Settings

Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software

ROI (Region of Interest)

Support 1 fixed region for mainstream and sub stream separately

Network

Network Storage

Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

Standard

ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI

General Function

One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in microSD/SDHC/SDXC slot, up to 128 GB

Smart Feature-set

Behavior Analysis

Line crossing detection, intrusion detection, unattended baggage detection, object removal detection

Line Crossing Detection

Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported

Intrusion Detection

Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported

Object Removal Detection

Objects removed from the pre-defined region, such as the exhibits on display.

Unattended Baggage Detection

Objects left over in the pre-defined region such as the baggage, purse, dangerous materials

Face Detection

Human face appears in the image can be detected and trigger linkage method

General

Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 W
PoE(802.3af, class 3), 7 W

IR Range

Up to 30 m

Protection Level

IP67, IK10

Dimensions

Camera: Φ 111 × 82.4 mm
Package: 134 × 134 × 108 mm

Weight

Camera: 500 g
