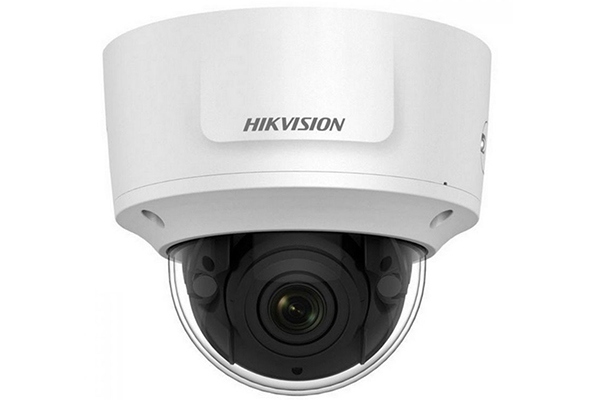

Camera IP Dome hồng ngoại 3.0 Megapixel HIKVISION DS-2CD2735FWD-IZS

Model

DS-2CD2735FWD-IZS

Camera

Image Sensor

1/2.8 inch Progressive Scan CMOS

Min. Illumination

Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR

Color: 0.0089 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Support

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120dB

3-Axis Adjustment

Pan: 0°to 355°, tilt: 0°to 75°, rotate: 0°to 355°

Lens

Focal length

2.8 to 12 mm

Aperture

F1.6

FOV

Horizontal field of view: 97°to 33°

Vertical field of view: 69°to 25°

Diagonal field of view: 130°to 41°

Lens Mount

Φ14

IR

IR Range

Up to 30 m

Wavelength

850nm

Compression Standard

Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub stream: H.265+/H.265/H.264+/H.264/MJPEG

Third stream: H.265+/H.265/H.264+/H.264

H.264 Type

Main Profile/High Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps to 16 Mbps

Audio Compression

G722.1/G711ulaw/G711alaw/G726/MP2L2

Audio Bit Rate

32 to 128kbps

Smart Feature-set

Behavior Analysis

Line crossing detection, intrusion detection, unattended baggage detection, object removal detection

Face Detection

Support

Region of Interest

Support 1 fixed region for each stream


Max. Resolution

2048 × 1536

Main Stream

50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280 × 720)

60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 360, 352 × 288)

60Hz: 30fps (640 × 360, 352 × 240)

Third Stream

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC/3D DNR

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser

Day/Night Switch

Auto/Schedule/Triggered by Alarm In

Network

Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function

One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter

API

ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Client

iVMS-4200, iVMS-4500, iVMS-5200

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

Audio

1 input (line in, 3.5 mm), 1 output(3.5 mm), single track

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Alarm

1 input, 1 output (max. 12 VDC, 30 mA)

Video Output

1Vp-p composite output (75 Ω/BNC

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

SVC

H.264 encoding supports

Reset Button

Support

Audio

Environment Noise Filtering

Support

Audio Sampling Rate

16 kHz

General

Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Power Supply

12VDC, 0.75A, max. 9.5W

PoE (802.3af, 37V to 57V), 0.1A to 0.3A, max. 11W

Protection Level

IP67, IK10

Material

Metal

Dimensions

Φ153.4 × 133.1 mm (Φ6.04' × 5.24')

Weight

Camera: 1287 g (2.84 lb.)
