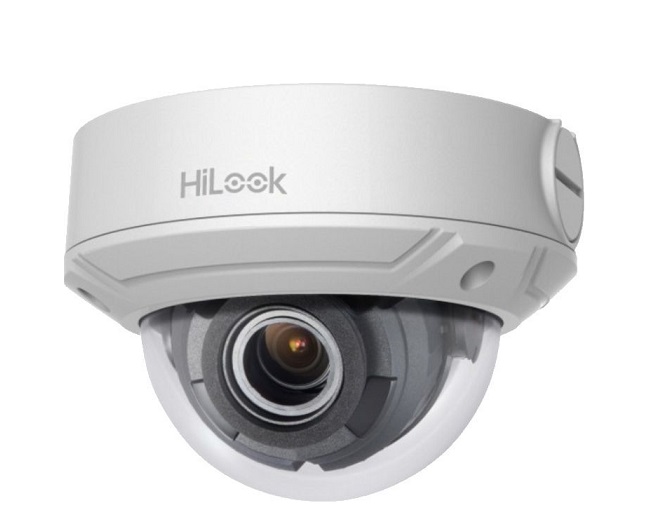

Camera IP Dome hồng ngoại 5.0 Megapixel HILOOK IPC-D650H-Z

Camera

Image Sensor

1/2.7-inch progressive scan CMOS

Min. Illumination

Color: 0.01 Lux @(F1.2; AGC ON), 0.02 Lux @ (F1.6, AGC ON)

Shutter Speed

1/3s to 1/100,000s

Slow Shutter

Yes

Day &Night

IR cut filter

DNR (Digital Noise Reduction)

3D DNR

WDR (Wide Dynamic Range)

120 dB

Angle Adjustment(Bracket)

Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°

Lens

Focal Length

2.8 to 12 mm

Aperture

F2.0

Focus

Auto

FOV

Horizontal FOV 98° to 28°, vertical FOV 71° to 21°, diagonal FOV 130° to 35°

Lens Mount

Φ14

IR

IR Range

Up to 30m

Wavelength

850 nm

Compression Standard

Video Compression

Main stream:H.265/H.264
Sub stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

Smart Feature-set

Region of Interest

1 fixed region for main stream and sub-stream


Max. Resolution

2560 × 1920

Main Stream
Max. Frame Rate

50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720)
60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)

Sub-stream
Max. Frame Rate

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Image Enhancement

BLC, 3D DNR

Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Auto, scheduled, day, night

Network

Network Storage

Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS)

Alarm Trigger

Motion detection, video tampering alarm, illegal login, network disconnected, IP address conflicted, HDD error, HDD full

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6UDP, Bonjour

General Function

One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Firmware Version

5.5.52

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users
3 levels: Administrator, Operator, and User

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128G

Reset Button

Yes

General

Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Power Supply

12 VDC ± 25%
PoE: 802.3af, class 3

Power Consumption and Current

12 VDC, 0.8 A, max. 10 W
PoE (802.3af, 36 to 57 V), 0.4 A to 0.2 A, max. 12 W

Protection Level

IP67, IK10

Material

Bubble: plastic, front cover & bottom base: metal

Dimensions

Camera: Φ141 mm × 99 mm (5.6' × 3.9')
With package: 140 mm × 140 mm × 154 mm (5.5' × 5.5' × 6.1')

Weight

Camera: approx. 800 g (1.8 lb.)
With package: approx. 1050 g (2.3 lb.)
