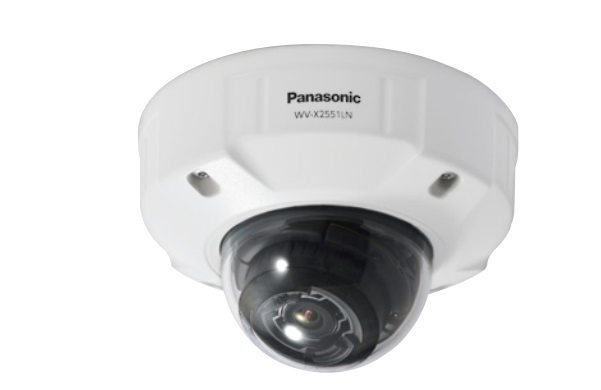

Camera IP Dome hồng ngoại 5.0 Megapixel PANASONIC WV-X2551LN

Model

WV-X2551LN

Camera

Image Sensor

1/2.8 type CMOS image sensor

Minimum Illumination

- Color: 0.07 lx, BW: 0.04 lx
 (50IRE, F1.3, Maximum shutter: Off (1/30s), AGC: 11)
- BW: 0 lx
 (50IRE, F1.3, Maximum shutter : Off (1/30 s), AGC: 11, when the IR LED is lit)
- Color: 0.0044 lx, BW: 0.003 lx
 (50IRE, F1.3, Maximum shutter: max. 16/30s, AGC: 11)

White Balance

ATW1/ATW2/AWC

Shutter Speed

[30fps mode] 1/30 Fix to 1/10000 Fix
[25fps mode] 1/25 Fix to 1/10000 Fix

AI Intelligent Auto

On/Off

Super Dynamic

On/Off, The level can be set in the range of 0 to 31.

Dynamic Range

Max. 132dB (Super Dynamic: On, Level: 30 or more, 15fps)

Adaptive Black Stretch

The level can be set in the range of 0 to 255.

Back light compensation/ High light compensation

BLC (Back light compensation)/ HLC (High light compensation)/ Off
The level can be set in the range of 0 to 31. (only when Super dynamic/AI Intelligent Auto: Off)

Fog compensation

On/Off, The level can be set in the range of 0 to 8
(only when AI Intelligent auto/auto contrast adjust: Off)

Maximum gain

The level can be set in the range of 0 to 11

Color/BW (ICR)

Off/On (IR Light Off)/On (IR Light On)/Auto1 (IR Light Off)/ Auto2 (IR Light On)/Auto3 (SCC)

IR LED Light

High/Middle/Low/Off,
Maximum irradiation distance: 40 m {Approx. 131 ft}

Digital Noise Reduction

The level can be set in the range of 0 to 255

Video Motion Detection (VMD)

On/Off, 4 areas available

Scene Change Detection (SCD)

On/Off, 1 area available

Privacy Zone

On/Off, Up to 8 zones available

Image rotation

0° (Off)/90°/180° (Upside-down)/270°

Camera Title (OSD)

On/Off, Up to 20 characters (alphanumeric characters, marks)

Lens

Optical zoom

3.1x (Motorized zoom/ Motorized focus)

Extra optical zoom

3.1x - 9.3 (when resolution is 640x360)

Digital (electronic) zoom

Choose from 3 levels of x1, x2, x4

Focal length

2.9 mm - 9 mm {1/8 inches - 11/32 inches}

Maximum Aperture Ratio

1 : 1.3 (WIDE) - 1 : 2.5 (TELE)

Focus range

0.3 m {11-13/16 inches} - ∞

Angular Field of View

[16 : 9 mode]
Horizontal : 33° (TELE) – 103° (WIDE), Vertical: 19° (TELE) – 55° (WIDE)

DORI

Detect (25ppm/8ft)

Wide: 48.87 m/160.34 ft, Tele: 207.42 m/680.51 ft

Observe (62.5ppm/19ft)

Wide: 19.55 m / 64.14 ft, Tele: 82.97 m / 272.20 ft

Recognize (125ppm / 38ft)

Wide: 9.77 m / 32.07 ft, Tele: 41.48 m / 136.10 ft

Identify (250ppm / 76ft)

Wide: 4.89 m / 16.03 ft, Tele: 20.74 m / 68.05 ft

Adjusting Angle

Adjusting Angle

Horizontal (PAN) angle: ±180°,
Vertical (TILT) angle: -30 to +85°, Azimuth (YAW) angle: ±100°

Browser GUI

Camera Control

Brightness, AUX On/Off

Audio

- Mic (Line) Input: On/Off
Volume adjustment: Low/Middle/High
- Audio Output: On/Off
Volume adjustment: Low/Middle/High

GUI/Setup Menu Language

English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

Network

Network IF

10Base-T / 100Base-TX, RJ45 connector

Resolution H.265/ H.264/ JPEG (MJPEG)

[16 : 9 mode]
3072×1728, 2560×1440, 1920×1080, 1280×720, 640×360, 320×180

H.265/H.264

Transmission Mode: Constant bit rate/VBR/Frame rate/Best effort

Transmission Type: Unicast port (AUTO)/  Unicast port (MANUAL)/ Multicast

JPEG

Image Quality: 10 steps

Smart Coding

Smart Facial Coding : On (Smart Facial Coding*)/On (Auto VIQS)/Off
*Smart Facial Coding is only available with Stream.

GOP (Group of pictures) control :
On (Frame rate control)*/On (Advanced)*/On (Mid)/On (Low)/Off
*On (Frame rate control) and On (Advanced) are only available with H.265.

Audio Compression

G.726 (ADPCM): 16 kbps/32 kbps
G.711: 64 kbps
AAC-LC: 64 kbps/96 kbps/128 kbps

Audio transmission mode

Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex)

Supported Protocol

- IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
- IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ

No. of Simultaneous Users

Up to 14 users (Depends on network conditions)

SDXC/SDHC/SD Memory Card

- H.265/H.264 recording: Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure
- JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure
- Compatible SDXC/SDHC/SD Memory Card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model
 *SDHC card, ** SDXC card (except miniSD card and microSD card)

Mobile Terminal Compatibility

iPad, iPhone, Android terminals

ONVIF Profile

G/S/T

Alarm

Alarm Source

3 terminals input, VMD alarm, SCD alarm, Command alarm

Alarm Actions

SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer, Panasonic alarm protocol output

Input/Output

Monitor Output (for adjustment)

VBS: 1.0 V [p-p]/75 Ω, composite, ø3.5 mm mini jack
An NTSC or PAL signal can be outputted from camera

Audio input

ø3.5 mm stereo mini jack

For microphone input:
- Recommended applicable microphone: Plug-in power type
(Sensitivity of microphone: -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
- Input impedance: Approx. 2 kΩ (unbalanced)
- Supply voltage: 2.5 V ±0.5 V

For line input:
Input level: Approx. –10 dBV

Audio Output

ø3.5 mm stereo mini jack (Audio output is monaural.)
Output impedance: Approx. 600 Ω (unbalanced)
Output level: -20 dBV

External I/O Terminals

ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)
ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)

General

Safety

UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1

EMC

FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024

Power Source and Power Consumption

DC power supply : DC 12 V 980 mA/Approx. 11.8 W
PoE (IEEE802.3af compliant) Device : DC48 V 260 mA/ Approx. 12.5 W (Class 0 device)

Ambient Operating Temperature

-40 °C to +60 °C (-40 °F to +140 °F)
(Power On range : –30 °C to +60 °C {–22 °F to +140 °F})

Ambient Operating Humidity

10 to 100 % (no condensation)

Dehumidification Device

Rosahl element

Water and Dust Resistance

IP66 (IEC60529), Type 4X(UL50E), NEMA 4X compliant

Shock Resistance

50J (IEC 60068-2-75 compliant), IK10 (IEC 62262)

Wind Resistance

Up to 40 m/s {approx. 89 mph}

Dimensions

When using base bracket : ø164 mm × 139 mm (H) {ø6-15/32 inches × 5-15/32 inches (H)}
Dome radius 42 mm {1-21/32 inches}
When using attachment plate only : ø154 mm × 103 mm (H) {ø6-1/16 inches × 4-1/16 inches (H)}
Dome radius 42 mm {1-21/32 inches}

Mass

When using base bracket : Approx. 1.6 kg {3.53 lbs}
When using attachment plate only : Approx. 1.2 kg {2.65 lbs}

Finish

Main body : Aluminum die cast, i-PRO white
Outer fixing screws : Stainless steel (Corrosion-resistant treatment)
Dome cover : Polycarbonate resin (with ClearSight coating), Clear
