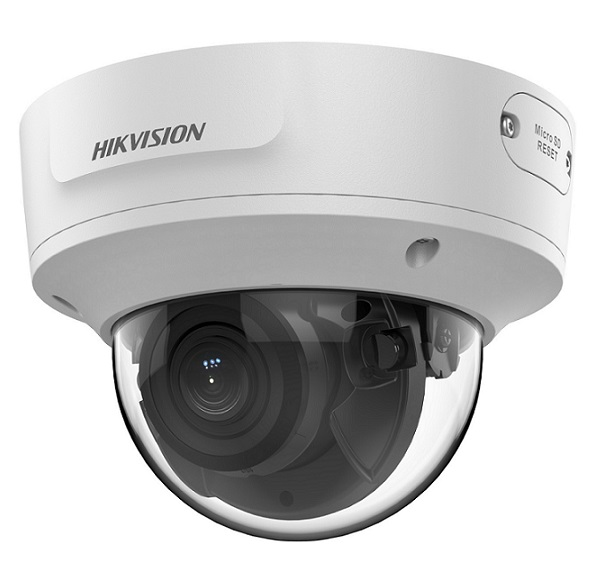

Camera IP Dome hồng ngoại 6.0 Megapixel HIKVISION DS-2CD2763G2-IZS

Model

DS-2CD2763G2-IZS

Camera

Image Sensor

1/2.8-inch Progressive Scan CMOS

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100, 000 s

Slow Shutter

Yes

Wide Dynamic Range

120 dB

Day &Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Lens Type

Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 106° to 32°, vertical FOV 55° to 18°, diagonal FOV 129° to 36°

Aperture

F1.6

Iris Type

Fixed

Lens Mount

Ø14

Illuminator

Supplement Light Type

IR

Smart Supplement Light

Yes

IR Range

Up to 40 m

Wavelength

850 nm

Video

Max. Resolution

3200 × 1800

Main Stream

50 Hz: 20 fps (3200 × 1800); 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (3200 × 1800); 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 16 Mbps

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio

Environment Noise Filtering

Yes

Audio Compression

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)


Day/Night Switch

Day, Night, Auto, Schedule

Image Setting

Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

SNR

≥ 52 dB

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

API

Open Network Video Interface (Profile S, Profile G), ISAPI, SDK

Simultaneous Live View

Up to 6 channels

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Interface

On-board Storage

Built-in memory card slot, support micro SD card, up to 256 GB

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Audio

1 input (line in), 1 output (line out)

Alarm

1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Hardware Reset

Yes

Intelligent

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Face Detection

Yes

Perimeter Protection

Line crossing detection, intrusion detection
Supports human and vehicle targets classification

General

General Function

Anti-flicker, heartbeat, password reset via email, pixel counter

Power Supply

12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3

Power Consumption and Current

12 VDC, 0.88 A, max. 10.5 W PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W

Ingress Protection

IP67, IK10

Material

Upper cover and base: metal
Bubble: plastic

Startup and Operating Conditions

-30 °C to 60 °C. Humidity 95% or less (non-condensing)

Dimensions

Ø 153.3 mm × 111.6 mm

Weight

885 g
