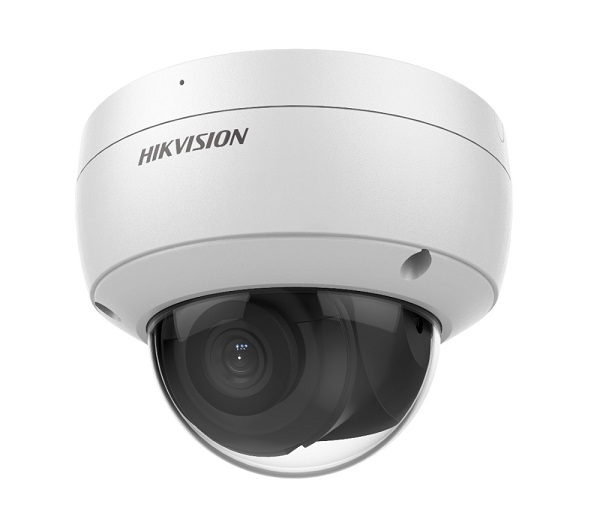

Camera IP Dome hồng ngoại 8.0 Megapixel HIKVISION DS-2CD2186G2-ISU(C)

Model

DS-2CD2186G2-ISU(C)

Camera

Image Sensor

1/1.8 inch progressive scan CMOS

Min. Illumination

Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100, 000 s

Slow Shutter

Yes

Wide Dynamic Range

120 dB

Day &Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Lens

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°

Aperture

F1.6

Lens Mount

M12

Iris Type

Fixed

IR

IR Range

Up to 30m

Wavelength

850 nm

Smart Supplement Light

Yes

Supplement Light

IR

Video

Max. Resolution

3840 × 2160

Video Compression

Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 8 Mbps

Scalable Video Coding (SVC)

Yes

Region of Interest (ROI)

1 fixed regions for each stream

Audio

Audio Type

mono sound

Environment Noise Filtering

Yes

Audio Compression

G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/ MP3/ AAC


SNR

≥ 52 dB

Target Cropping

Yes

Day/Night Switch

Day, Night, Auto, Schedule

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

Smooth Streaming

Yes

API

Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Simultaneous Live View

Up to 6 channels

Interface

Alarm

1 alarm input, 1 alarm output (max. 12 VDC @30 mA)

Built-in Microphone

Yes

Audio

1 input (line in), 1 output (line out)

On-board Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Reset Key

Yes

Intelligent

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Smart Event

Scene change detection

Face Capture

Yes

Premier Protection

Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Supports human and vehicle targets classification

General

General Function

Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Power Supply

12 VDC ± 25%
PoE: 802.3af, Class 3

Power Consumption and Current

12 VDC, 0.5 A, max. 6 W
PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W

Ingress Protection

IP67, IK10

Material

Metal

Dimensions

Ø 121.4 mm × 92.2 mm

Weight

590g
