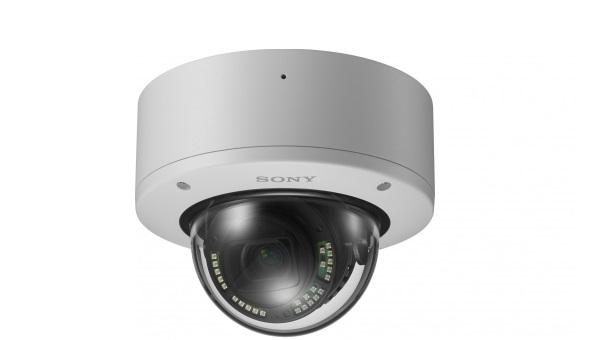

Camera IP Dome hồng ngoại không dây 20 Megapixels SONY SNC-VM772R

Camera IP

Image Sensor

1.0-type progressive scan Exmor R CMOS sensor

Number of Effective Pixels

Approx. 20 Megapixels

Sync System

Internal synchronization

Dynamic Range

Equivalent to 90 dB with View-DR Technology

Gain

Auto/Manual (0 dB to +48 dB)

Shutter Speed

1/1 s to 1/10,000 s

Exposure Control

Exposure compensation, AGC, Shutter speed, Iris

White Balance

ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapor lamp, Metal halide lamp, White LED, One push WB, Manual, Indoor, Outdoor

Lens

Built-in zoom lens

Easy Zoom

Optical zoom 2.9x
Clear Image Zoom 2.0x
Digital zoom 2.0x
Total zoom 11.6x

Camera Features

Day/Night

True D/N

Wide-D

View-DR

Tone Correction

Visibility Enhancer

Defog Image Processing

Yes

Highlight Compensation

Yes

Flicker Reduction

Yes

Distortion Correction

Yes

Noise Reduction

XDNR

Intelligent Scene Capture

Yes

Privacy Masking (number)

24

Privacy Masking (shape)

Quadrangle formed by any four corner points

Video

Resolution

H.264 (High/Main Profile), JPEG
H.264 (B-picture) is supproted for 3840 x 2160 and 2880 x 2160 resolution.

Compression Format

H264: 30 fps (3840 x 2160)/10 fps (1920 x 1080)
JPEG: 2.5 fps (5472 x 3648)

Maximum Frame Rate

H264: 30 fps (3840 x 2160)/10 fps (1920 x 1080)
JPEG: 2.5 fps (5472 x 3648)

Number of Clients

20

Audio

Compression Format

G.711 (bit rate: 64 kbps, sampling frequency: 8 kHz), G.726 (bit rate: 40, 32, 24, 16 kbps, sampling frequency: 8 kHz), AAC-LC (bit rate: 64 kbps, sampling frequency: 16 kHz), AAC-LC (bit rate: 128 kbps, sampling frequency: 48 kHz)

System Requirements

Operating System

Windows 7 (32/64 bit) Ultimate, Professional Edition, Windows 8 Pro (32/64 bit)
Windows 8.1 Pro (32/64 bit)

Memory

8 GB or more

Network

Protocols

IPv4, IPv6, TCP, UDP, ARP, ICMP, ICMPv6, IGMP, MLD, HTTP, DHCP, DHCPv6, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP {client}, HTTPS, FTP (client), SNMP (v1, v2c, v3), TLS {v1.0}

QoS

DSCP

Number of IP Address/Mac ADDRESS

1

Multicast Streaming Support

Yes

ONVIF Conformance

Profile S

Wireless Network

Yes for setup (IEEE802.11b/g/n with optional IFU-WLM3)

Authentication

IEEE802.1X

Interface

Digital Video Output

HDMI (type A) x1

Microphone Input

Mini jack (monaural, 2.2 kΩ, plug-in-power)

Line Input

Mini jack (monaural)

Network Port

10BASE-T/100BASE-TX (RJ-45)

Alarm Input (Sensor Input)

x2, make contact, break contact

Alarm Output

x2, Max. AC 12 V/DC 24 V, 0.4 A
(solid-state relay outputs electrically isolated from the camera)

Wireless LAN Terminal

Yes

Card Slots

SD x1

Confirmed SD Card Type

SDHC/SDXC (Max. 128 GB)

SD off Switch

Yes

General

Power Requirements

IEEE 802.3af compliant (PoE) Class 3, DC 12 V ± 10 %, AC 24 V ± 20 %, 50/60 Hz

Power Consumption

Max. 12.95 W

Dimensions

φ190 x 146.7 mm
ø7 1/2 inches x 5 7/8 inches
