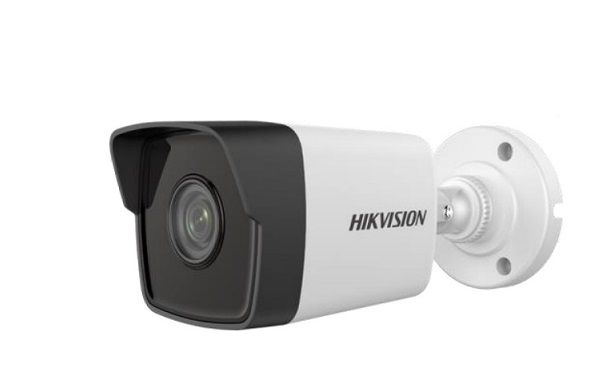

Camera IP hồng ngoại 2.0 Megapixel HIKVISION DS-2CD1023G0E-IF

Model

DS-2CD1023G0E-IF

Camera

Image Sensor

1/2.8-inch Progressive Scan CMOS

Min. Illumination

Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Speed

1/3s to 1/100,000s

Slow Shutter

Yes

Day & Night

IR Cut Filter

WDR

DWDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

Lens Type

Fixed lens, 2.8/4 mm

Aperture

F2.0

FOV

2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°

Lens Mount

M12

Illuminator

IR Range

Up to 30 m

Wavelength

850 nm

Video

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

Smart Feature-Set

Image Enhancement

BLC, 3D DNR

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser

Day/Night Switch

Day/Night/Auto/Schedule

Network

Network Storage

microSD/SDHC/SDXC card (128 GB) (supports image and logs storage only), local storage

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users, 3 levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11

Interface

Communication Interface

1 RJ45 self-adaptive Ethernet port

On-board storage

Built-in micro SD/SDHC/SDXC slot, up to 128 GB (supports image and logs storage only)

General

Firmware Version

5.5.83

General Function

One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Reset

Reset via reset button on camera body, web browser and client software

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)

Power Consumption and Current

12 VDC, 0.30 A, max.3.6 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max.4.0 W

Material

Front cover: metal, back cover: plastic

Dimensions

Camera: 67.8 × 66.2 × 177.6 mm
With package: 216 × 121 × 118 mm

Weight

Camera: Approx. 280 g (0.6 lb.)
With package: Approx. 480 g (1.1 lb.)

Approval

EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:
2015, KN 35: 2015

Safety

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1

Chemistry

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protection

Ingress protection: IP67 (IEC 60529-2013)
