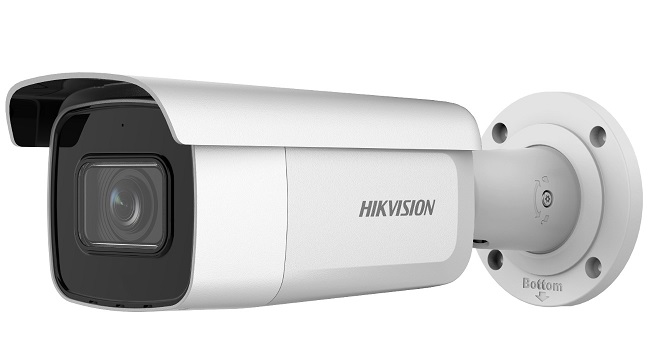

Camera IP hồng ngoại 2.0 Megapixel HIKVISION DS-2CD2623G2-IZS

Model

DS-2CD2623G2-IZS

Camera

Image Sensor

1/2.8-inch Progressive Scan CMOS

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100, 000 s

Slow Shutter

Yes

Wide Dynamic Range

120 dB

Day &Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type & FOV

2.8 to 12 mm, horizontal FOV 106.6° to 31.7°, vertical FOV 54.7° to 17.7°, diagonal FOV 130.3° to 36.4°

Aperture

F1.6

Lens Mount

Ø14

IR

IR Range

Up to 60 m

Wavelength

850 nm

Video

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25 fps (1920 × 1080, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 720)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 16 Mbps

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio

Environment Noise Filtering

Yes

Audio Compression

G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/ MP3/ AAC


Day/Night Switch

Day, Night, Auto, Schedule

Image Setting

Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

API

Open Network Video Interface (Profile S, Profile G), ISAPI, SDK

Simultaneous Live View

Up to 6 channels

Network Storage

MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Interface

On-board Storage

Built-in micro SD, up to 256 GB

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Audio

1 input (line in), 1 output (line out)

Alarm

1 input, 1 output (max. 12 VDC, 30 mA)

Hardware Reset

Yes

Intelligent

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Face Detection

Yes

Perimeter Protection

Line crossing detection, intrusion detection
Supports human and vehicle targets classification

General

General Function

Anti-flicker, heartbeat, password reset via email, pixel counter

Power Supply

12 VDC ± 25%; PoE: 802.3at, Class 4

Power Consumption and Current

12 VDC,1.08 A, max. 13 W PoE: (802.3at, 42.5 V to 57 V ), 0.36 A to 0.27 A, max. 15 W

Ingress Protection

IP67, IK10

Material

Aluminum alloy body

Startup and Operating Conditions

-30 °C to 60 °C. Humidity 95% or less (non-condensing)

Dimensions

308.5 mm × 97.9 mm × 93 mm

Weight

1390g
