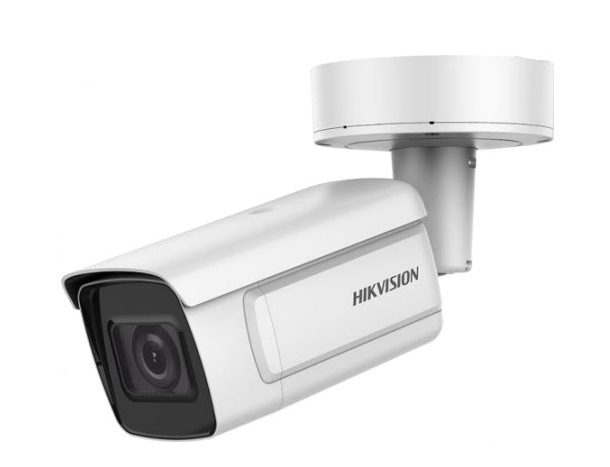

Camera IP hồng ngoại 2.0 Megapixel HIKVISION DS-2CD5A26G1-IZHS (2.8~12mm)

Model

DS-2CD5A26G1-IZS

Camera

Image Sensor

1/1.8 inch Progressive Scan CMOS

Min. Illumination

Color: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

WDR

140dB

Angle Adjustment

Pan: 0°to 355°, tilt: 0°to 90°, rotate: 0°to 360°

Lens

Lens Type

Motorized lens , 2.8 to 12 mm

Aperture

F1.2 to F2.5

Focus

Auto, semi-auto, manual

FOV

Horizontal FOV 103.3°to 38.6°, vertical FOV 54.2°to 21.9°, diagonal FOV 124.2°to 44.3°

Lens Mount

Integrated

Compression Standard

Video Compression

H.265, H.265+, H.264, H.264+

Video Bit Rate

32 Kbps to 16 Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM


Max. Resolution

1920 x 1080

Image Enhancement

BLC, HLC, Defog, EIS, Distortion Correction, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Day/Night Switch

Auto/Schedule/Day/Night/Triggered by Alarm In

Target Cropping

Yes

Network

Network Storage

microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS, SMB/CIFS), ANR

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

General Function

One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Simultaneous Live View

Up to 20 channels

Interface

Communication

1 RJ45 10M/100M/1000M self-adaptive Ethernet port, RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Audio

1 input (line in), 1 output (line out), 3.5 mm connector, mono

Alarm

2 inputs, 2 outputs (24 VAC/VDC, 1 A max.)

On-board storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Smart Feature-set

Behavior Analysis

Line crossing detection, intrusion detection, Region entrance detection, Region exiting detection, unattended baggage detection, object removal Detection, Face detection, Scene change detection, audio exception detection, defocus detection

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Region of Interest

4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking

General

Power Supply

12 VDC ± 20%, three-core terminal block, reverse polarity protection
PoE (802.3at, class 4)

Material

Metal

Impact Protection

IK10

Weather Proof

IP67

Heater

Yes

IR Range

50m

Dimensions

Φ144 × 347 mm

Weight

1.85kg
