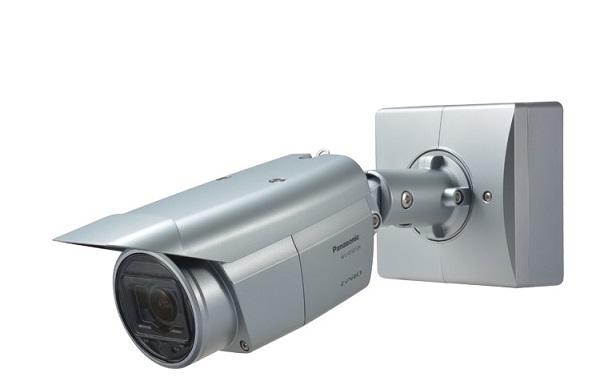

Camera IP hồng ngoại 2.0 Megapixel PANASONIC WV-S1531LNPJ

Model

WV-S1531LNPJ

Camera

Image Sensor

Approx. 1/3 type MOS image sensor

Minimum Illumination

- Color: 0.012 lx, BW: 0.006 lx
 (F1.6, Maximum shutte: Off (1/30s), AG: 11)
BW: 0 lx
 (F1.6, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit)
Color: 0.0008 lx, BW: 0.0004 lx
 (F1.6, Maximum shutter: max. 16/30s, AGC: 11)

White Balance

AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)

Shutter Speed

1/30 Fix to 1/10000 Fix
*1/30 Fix to 2/120 Fix is available during 30 fps mode only.
*1/60 Fix is available during 60 fps mode only

Intelligent Auto

On/ Off

Super Dynamic

On/ Off, the level can be set in the range of 0 to 31.

Dynamic Range

144dB (Super Dynamic: On)

Adaptive Black Stretch

The level can be set in the range of 0 to 255.

Back light compensation/ High light compensation

BLC (Back light compensation)/ HLC (High light compensation)/ Off
(only when Super dynamic/ Intelligent Auto: Off)

Fog compensation

On/ Off (only when Intelligent auto/ auto contrast adjust: Off)

Maximum gain

The level can be set in the range of 0 to 11.

Color/BW (ICR)

Off/ On (IR Light Off)/ On (IR Light On)/ Auto1(IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)

IR LED Light

High/ Middle/ Low/ Off, Maximum irradiation distance: 40 m {Approx. 131 ft}

Digital Noise Reduction

The level can be set in the range of 0 to 255.

Video Motion Detection (VMD)

On/ Off, 4 areas available

Intelligent VMD (i-VMD)

Type 4 *Bundled License

Stabilizer

On/ Off (available only in the 30 fps mode)

Privacy Zone

On/ Off (up to 8 zones available)

Image rotation

0°/ 90°/ 180°/ 270 °

Camera Title (OSD)

On/ Off Up to 20 characters (alphanumeric characters, marks)

Focus Adjustment

Auto back focus/ Manual

Lens

Focal length

2.8 - 10 mm {1/8 inches - 13/32 inches}

Zoom ratio

3.6 x (Motorized zoom / Motorized focus)

Angular Field of View

[16 : 9 mode] Horizontal : 31° (TELE) – 112° (WIDE)
                      Vertical : 17° (TELE) – 60° (WIDE)
[4 : 3 mode] Horizontal : 26° (TELE) – 91° (WIDE)
                    Vertical : 19° (TELE) – 67° (WIDE)

Maximum Aperture Ratio

1 : 1.6 (WIDE) – 1 : 3.4 (TELE)

Focusing Range

0.3 m {11-13/16 inches} – ∞

Adjusting Angle

Ceiling mounting

- Horizontal: ±180° (PAN rotation part)
- Vertical: 0° to 100° (TILT rotation part)
- Yaw: –190° to +100° (YAW rotation part)

Wall mounting

- Horizontal: ±100 ° (TILT rotation part)*
- Vertical: ±100 ° (TILT rotation part)*
- Yaw: –190 ° to +100 ° (YAW rotation part)
* You can change between horizontal and vertical angels by adjusting the PAN rotation part.

Browser GUI

Camera Control

Brightness, AUX On/ Off

Audio

Mic (Line) Input : On/ Off   Volume adjustment: Low/ Middle/ High
Audio Output: On/ Off      Volume adjustment : Low/ Middle/ High

GUI/ Setup Menu Language

English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

Network

Network IF

10Base-T/ 100Base-TX, RJ45 connector

Resolution H.265/ H.264/JPEG (MJPEG)

- 2 Megapixel [16 : 9] (30/60 fps)
 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180
- 3 Megapixel [4 : 3] (30 fps)
 2,048 x 1,536/ 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/ 320 x 240

H.265/H.264

- Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort
- Transmission Type: Unicast/ Multicast

JPEG

Image Quality: 10 steps

Smart Coding

- Smart Facial Coding: On (Smart Facial Coding)/ On (Auto VIQS)/ Off
- GOP (Group of pictures): On (Advanced)/ On (Mid)/ On (Low)/ Off

Audio Compression

G.726 (ADPCM): 16 kbps/ 32 kbps
G.711: 64 kbps
AAC-LC: 64 kbps/ 96 kbps/ 128 kbps

Audio transmission mode

Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex)

Supported Protocol

- IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
- IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ

No. of Simultaneous Users

Up to 14 users (Depends on network conditions)

SDXC/SDHC/SD Memory Card

- H.265/ H.264 recording:
Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure
- JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure Compatible SDXC/SDHC/SD
- Memory Card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card)

Mobile Terminal Compatibility

iPad, iPhone, AndroidTM mobile terminals

Alarm

Alarm Source

3 terminals input, VMD alarm, Command alarm, Audio detection alarm

Alarm Actions

SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic alarm protocol output

Input/Output

Monitor Output (for adjustment)

VBS: 1.0 V [p-p]/ 75 Ω, composite, Pin jack
An NTSC or PAL signal can be outputted from camera

Audio input

ø3.5 mm stereo mini jack
Input impedance: Approx. 2 kΩ (unbalanced)
(Applicable microphone: Plug-in power type)
Supply voltage: 2.5 V ±0.5 V

Audio Output

ø3.5 mm stereo mini jack (monaural output)
Output impedance: Approx. 600 Ω (unbalanced)

External I/O Terminals

ALARM IN1(Alarm input 1/ Black & white input/ Auto time adjustment input), ALARM IN2 (Alarm input 2/ ALARM OUT), ALARM IN3(Alarm input 3/ AUX OUT) (x1 for each)

General

Safety

UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1

EMC

FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024

Power Source and Power Consumption

- DC power supply: DC12 V 750 mA, Approx. 9.0 W
- PoE (IEEE802.3af compliant) Device: DC48V/195 mA, Approx. 9.4W (Class 0 device)

Ambient Operating Temperature

- IR LED: On -40°C to +50°C (-40°F to 122°F), IR LED: Off -40°C to +60°C (-40°F to 140°F)
(Power On range: –30°C to +60°C {–22°F to +140°F})

Ambient Operating Humidity

10 to 100 % (no condensation)

Water and Dust Resistance

IP66, IEC60529 measuring standard compatible, Type 4X(UL50), NEMA 4X compliant

Shock Resistance

IK10 (IEC 62262)

Dimensions
* Installing using the base bracket

130 mm (W) x 130 mm (H) x 337 mm (L)
{5-1/8 inches (W) x 5-1/8 inches (H) x 13-9/32 inches (L)}

Mass (approx.)

Approx. 1.6 kg {3.53 lbs} When using the adapter box : Approx. 2.1 kg {4.63 lbs}

Finish

Main body: Aluminum die cast, Metallic silver
Front cover section clear part: Clear polycarbonate resin (ClearSight coating)
