Camera IP hồng ngoại 2.0 Megapixel UNV IPC2122SR3-UPF40-C

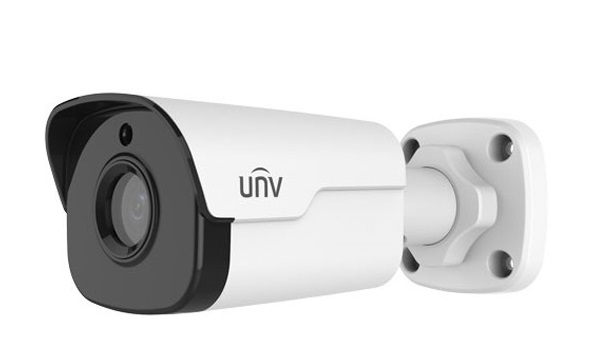

Camera IP UNV  hồng ngoại 2.0 MegapixelIPC2122SR3-UPF40-C

- Cảm biến hình ảnh: 1/2.8 inch CMOS.

- Độ phân giải camera ip: 2.0 Megapixel.

- Ghi hình: Max 30fps (1920×1080).

- Ống kính cố định: 4mm.

- Góc quan sát: 82º.

- Độ nhạy sáng: 0.001 Lux.

- Tầm quan sát hồng ngoại: 30 mét.

- Chức năng chống nhiễu 3D-DNR.

- Chức năng chống ngược sáng WDR 120dB.

- Chế độ hành lang Corridor mode.

Đặc tính kỹ thuật

Model	IPC2122SR3-UPF40-C
Camera
Sensor	1/2.8 inch progressive scan CMOS, 2.0 megapixel
Lens	4.0mm@ F1.6
Adjustment angle	Pan: 0°~360°, Tilt: 0°~90°, Rotate: 0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour: 0.001 Lux (F1.6, AGC ON); 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
IR Range	up to 30m
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
9:16 Corridor Mode	Supported
HLC	Supported
BLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Supporting	Behavior Detection; Intrusion; Cross line; Motion detection; Recognition; Intelligent Identification; Statistical Analysis
General Function	Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration	ONVIF (Profile S), API
Interface
Network	1 RJ45, 10M/100M Base-TX Ethernet
General
Power	12 VDC±25%, PoE (IEEE802.3 af)
Power consumption	Max. 6.4W
Ingress Protection	IP67
Dimensions	157.3 ×62.4 ×63 mm
Weight	0.45kg
