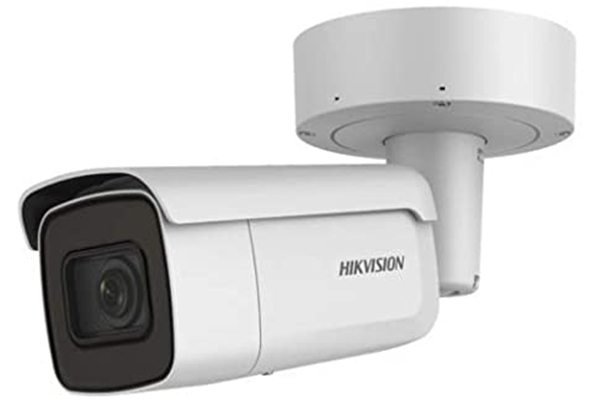

Camera IP hồng ngoại 3.0 Megapixel HIKVISION DS-2CD2635FWD-IZS

Model

DS-2CD2635FWD-IZS

Camera

Image Sensor

1/2.8 inch Progressive Scan CMOS

Min. Illumination

Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR

Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Auto-Iris

Support

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120dB

3-Axis Adjustment

Pan: 0°to 360°, tilt: 0°to 90°, rotate: 0°to 360°

Lens

Focal length

2.8 to 12 mm

Lens Type

Motorized

Aperture

F1.4

Focus

Auto

FOV

Horizontal field of view: 98°to 33°

Vertical field of view: 69°to 25°

Diagonal field of view: 130°to 41°

Lens Mount

Φ14

IR

IR Range

Up to 50 m

Wavelength

850nm

Compression Standard

Video Compression

Main stream: H.265/H.265+/H.264/H.264+

Sub stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16 Mbps

Audio Compression

G.711/G.711a/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Smart Feature-set

Behavior Analysis

Line crossing detection, intrusion detection, unattended baggage detection, object removal detection

Exception Detection

Scene change detection

Face Detection

Support

Region of Interest

Support 1 fixed region for main stream and sub stream


Max. Resolution

2048 × 1536

Main Stream

50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280 × 720)

60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

AWB/BLC/3D DNR/ROI/HLC

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Network

Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output

Protocols

TCP, UDP, TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, PSIA,CGI, ARP, Multicast, IPv4/v6, ICMP

General Function

One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11. Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Interface

Audio

1 input (line in, 3.5 mm), 1 output (3.5 mm), mono sound

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Alarm

1 input, 1 output (max. 12 VDC, 30 mA), terminal block

Video Output

1Vp-p composite output (75 Ω) (For adjustment only

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

SVC

Support H.264 and H.265 encoding

Reset Button

Yes

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8kHz/16kHz/32kHz/44.1kHZ/48kHz

General

Operating Conditions

-40 °C to +60 °C, Humidity 95% or less (non-condensing)

Power Supply

24VDC± 25%, PoE (802.3at)

Terminal block for DC input

Power Consumption and

24VDC, 0.65A, max. 15.5W

Current

PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 17.5W

Protection Level

IP67, IK10

Material

Metal

Dimensions

Φ144.13 × 332.73 mm

Weight

Camera: Approx. 1890 g
