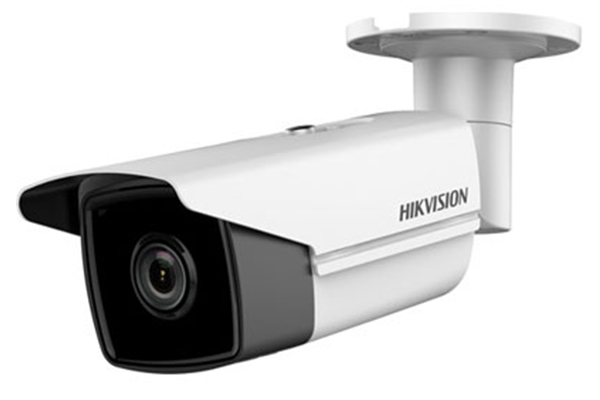

Camera IP hồng ngoại 4.0 Megapixel HIKVISION DS-2CD2T45FWD-I8

Model

DS-2CD2T45FWD-I8

Camera

Image Sensor

1/2.5 inch Progressive Scan CMOS

Min. Illumination

Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

120dB

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°

Lens

Focus

Fixed

Lens Type

2.8, 4, 6, 8, 12 mm

FOV

2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°,4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°,6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°,8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°,12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°

Aperture

F1.6

Lens Mount

M12

Aperture Type

Fixed

Illuminator

IR Range

Up to 80 m

Wavelength

850nm

Video

Max. Resolution

2688 × 1520

Main Stream

50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)

Video Compression

Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Main Profile/High Profile

H.265 Type

Main stream supports

Scalable Video Coding (SVC)

H.264 and H.265 encoding support

Region Of Interest (ROI)

Support 1 fixed region for main stream and sub-stream

Network

Simultaneous Live View

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

User/Host

Up to 32 users,3 levels: Administrator, Operator and User

Network Storage

Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:, Chrome 45.0+, Firefox 52.0+

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error


Day/Night Switch

Day/Night/Auto/Schedule

Target Cropping

No

DNR

3D-DNR

Image Enhancement

BLC/3D DNR/HLC

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface

On-Board Storage

Built-in microSD/SDHC/SDXC slot, up to 128 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M/100Mbps self-adaptive Ethernet port

Event

Smart Event

Line crossing detection, intrusion detection, object removal detection, unattended baggage detection

Face Detection

Yes

Exception Detection

Scene change detection

Protection

IP67

General

Firmware Version

V5.5.80

General Function

One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Startup And Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, Φ 5.5 mm coaxial plug power, PoE (802.3af, class 3)

Power Consumption And Current

12 VDC, 1 A, max: 11.5 W, PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.9 W

Dimension

Camera: Φ104.8 mm × 299.7 mm (Φ4.1' × 11.8'),Package: 386 mm × 156 mm × 155 mm

Weight

1200g
