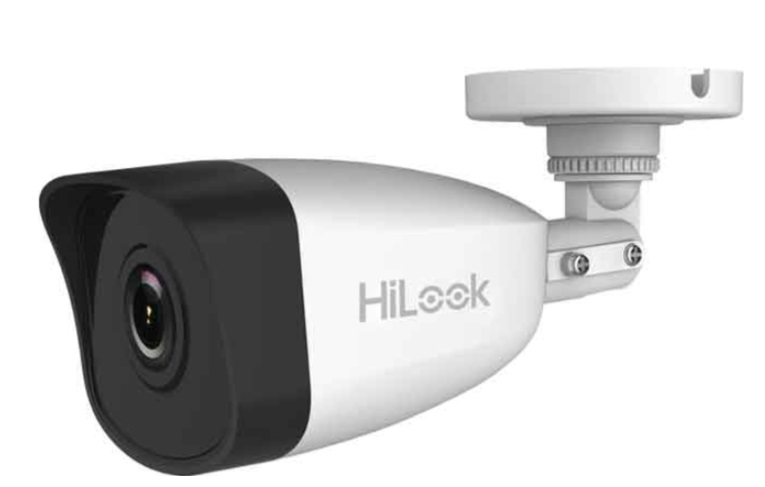

Camera IP hồng ngoại 5.0 Megapixel HILOOK IPC-B150H

Camera quan sát

Image Sensor

1/2.7-inch progressive scan CMOS

Min. Illumination

Color: 0.01 Lux @(F1.2, AGC ON), 0.028 lux@(F2.0, AGC ON)

Shutter Speed

1/3s to 1/100, 000s

Slow Shutter

Yes

Day &Night

IR cut filter

DNR (Digital Noise Reduction)

3D DNR

WDR (Wide Dynamic Range)

120 dB

Angle Adjustment(Bracket)

Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°

Lens

Focal Length

2.8 mm, 4 mm, 6 mm

Aperture

F2.0

Focus

Fixed

FOV

2.8 mm, horizontal FOV 100°, vertical FOV 74°, diagonal FOV 130°
4 mm, horizontal FOV 75°, vertical FOV 55°, diagonal FOV 98°
6 mm, horizontal FOV 49°, vertical FOV 37°, diagonal FOV 60°

Lens Mount

M12

IR

IR Range

Up to 30 m

Wavelength

850 nm

Compression Standard

Video Compression

Main stream:H.265/H.264
Sub stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

Smart Feature-set

Region of Interest

1 fixed region for main stream and sub-stream


Max. Resolution

2560 × 1920

Main Stream
Max. Frame Rate

50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720)
60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)

Sub-stream
Max. Frame Rate

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Image Enhancement

BLC, 3D DNR

Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Auto, scheduled, day, night

Network

Network Storage

NAS (NFS, SMB/CIFS)

Alarm Trigger

Motion detection, video tampering alarm, illegal login, network disconnected, IP address conflicted, HDD error, HDD full

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6UDP, Bonjour

General Function

Heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Firmware Version

5.5.52

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users
3 levels: Administrator, Operator, and User

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

General

Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)

Power Consumption and Current

12 VDC, 0.5 A, Max: 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W

Protection Level

IP67

Material

Front cover: metal, back cover: plastic, bracket: plastic

Dimensions

Camera:  Ø 70 mm × 191.3 mm
With package: 216 mm × 121 mm × 118 mm

Weight

Camera IP: approx. 300 g (0.7 lb.)
With package: approx: 500 g (1.1 lb.)
