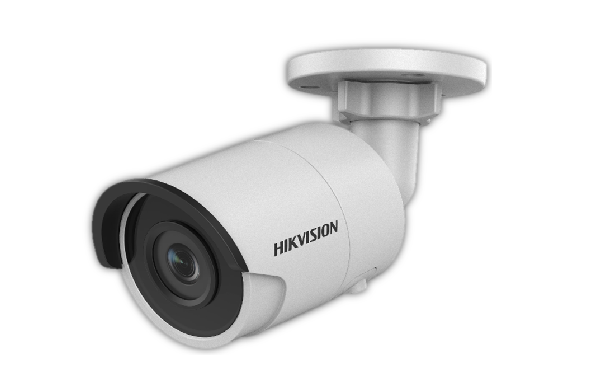

Camera IP hồng ngoại 6.0 Megapixel HIKVISION DS-2CD2063G0-I

Model

DS-2CD2063G0-I

Camera

Image Sensor

1/2.9 inch Progressive Scan CMOS

Min. Illumination

Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120dB

3-Axis Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focal Length

2.8/4/6/8 mm

Aperture

F2.0

Focus

Auto

FOV

2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°
6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°
8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48°

Lens Mount

M12

IR

IR Range

Up to 30 m

Wavelength

850 nm

Compression Standard

Video Compression

Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16 Mbps

Smart Feature-set

Behavior Analysis

Line crossing detection, intrusion detection

Face Detection

Yes

Region of Interest

Support 1 fixed region for main stream and sub-stream


Max. Resolution

3072 × 2048

Main Stream

50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 ×720)
60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 ×720)

Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps(1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps(1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC/3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser

Day/Night Switch

Day/Night/Auto/Schedule

Network

Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function

One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Firmware Version

V5.5.3

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

Up to 32 users
3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect, iVMS-5200

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in microSD/SDHC/SDXC slot, up to 128 GB

SVC

H.264 and H.265 encoding support

Reset Button

Yes

General

Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, Φ 5.5mm coaxial power plug PoE(802.3af, class 3)

Power Consumption and Current

12 VDC, 0.4 A, max. 6W
PoE: (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7.5W

Protection Level

IP67

Material

Metal

Dimensions

Camera: Φ 70 × 155 mm
Package: 216 × 121 × 118 mm

Weight

Camera: approx. 410 g
