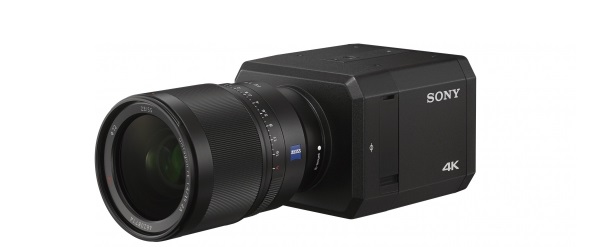

Camera IP không dây 12 Megapixels SONY SNC-VB770

Camera

Image Sensor

35mm full frame Exmor CMOS sensor

Number of Effective Pixels

Approx.12.2 Megapixels

Sync System

Internal synchronization

Minimum Illumination (50 IRE)

0.007 lx (ISO409,600, 1/30 s, F1.4)

Minimum Illumination (30 IRE)

0.004 lx  (ISO409,600, 1/30 s, F1.4)

Dynamic Range

Equivalent to 100 dB with View-DR Technology

Gain

Auto/Manual (0 dB to +72 dB)

Shutter Speed

1/1 s to 1/10,000 s

Exposure Control

Exposure compensation, AGC, Shutter speed, Iris

White Balance

ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapor lamp, Metal halide lamp, White LED, One push WB, Manual, Indoor, Outdoor

Lens

E-mount FE lens (option)

Easy Zoom

Yes
Clear image zoom 2.0x
Clear image zoom 2.0x

Camera Features

Wide-D

View-DR

Tone Correction

Visibility Enhancer

Defog Image Processing

Yes

Highlight Compensation

Yes

Flicker Reduction

Yes

Distortion Correction

Yes

Noise Reduction

XDNR

Intelligent Scene Capture

Yes

Privacy Masking (number)

24

Privacy Masking (shape)

Quadrangle formed by any four corner points

Video

Resolution

4240 x 2832, 3840 x 2160, 2880 x 2160, 1920 x 1080, 1440 x 1080, 1440 x 960, 1280 x 720, 960 x 720, 640 x 480, 640 x 360, 320 x 240, 320 x 180

Resolution via HDMI

3840 x 2160, 720 x 480, 720 x 576

Compression Format

H.264 (High/Main Profile), JPEG, H.264 (B-picture) is supproted for 3840 x 2160 and 2880 x 2160 resolution.

Maximum Frame Rate

H264: 30 fps (3840 x 2160), JPEG: 2.5 fps (4240 x 2832)

Number of Clients

20

Audio

Compression Format

G.711 (bit rate: 64 kbps, sampling frequency: 8 kHz), G.726 (bit rate: 40, 32, 24, 16 kbps, sampling frequency: 8 kHz), AAC-LC (bit rate: 64 kbps, sampling frequency: 16 kHz), AAC-LC (bit rate: 128 kbps, sampling frequency: 48 kHz)

System Requirements

Operating System

Windows 7 (32/64 bit) Ultimate, Professional Edition, Windows 8.1 Pro (32/64 bit), Windows10 Pro (32/64 bit)

Memory

8 GB or more

Network

Protocols

IPv4, IPv6, TCP, UDP, ARP, ICMP, ICMPv6, IGMP, MLD, HTTP, DHCP, DHCPv6, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP {client}, HTTPS, FTP (client), SNMP (v1, v2c, v3), TLS {v1.0}

QoS

DSCP

Wireless Network

Yes for setup (IEEE802.11b/g/n with optional IFU-WLM3)

Digital Video Outpu

HDMI (type D) x1

Microphone Input

Mini jack (monaural, 2.2 kΩ, plug-in-power)

Network Port

10BASE-T/100BASE-TX (RJ-45)

Alarm Input (Sensor Input)

x2, make contact, break contact

Alarm Output

x2, Max. AC 24V/DC 12V, 0.4A (solid-state relay outputs electrically isolated from the camera)

Wireless LAN Terminal

Yes

Card Slots

SD x1

Confirmed SD Card Type

SDHC/SDXC (Max. 128 GB)

SD OFF Switch

Yes

General

Power Requirements

IEEE 802.3af compliant (PoE) Class 3, DC 12 V ± 25 %, AC 24 V ± 20 %, 50/60 Hz

Power Consumption

Max. 16 W (including E-mount FE lens)

Dimensions (W x H x D)

104 mm x 84.6 mm x 118 mm (without lens) 4 1/8 inches x 3 3/8 inches x 4 3/4 inches (without lens)
