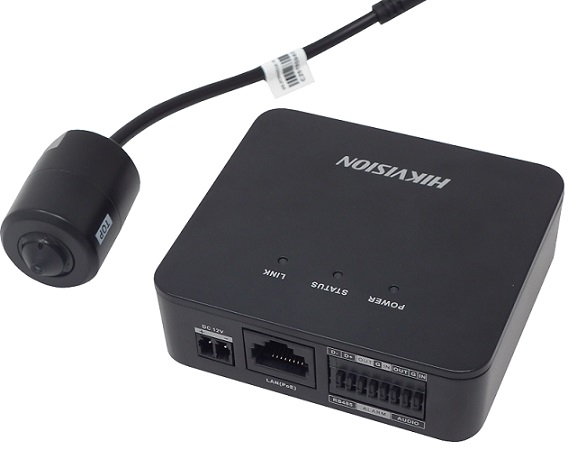

Camera IP ngụy trang 2.0 Megapixel HIKVISION DS-2CD6425G0-10 (2m cable)

Model

DS-2CD6425G0-10

Camera

Image Sensor

1/2.8 inch Progressive Scan CMOS

Signal System

PAL/NTSC

Min. Illumination

Color: 0.005 Lux @(F1.2, AGC ON), 0.014 Lux @(F2.0, AGC ON)

B/W: 0.0001 Lux @(F1.2, AGC ON), 0.0003 Lux @(F2.0, AGC ON)

Shutter time

1 s to 1/100,000 s

Slow shutter

Yes

Lens

3.7 mm (cylindrical)

Lens Mount

Pinhole

Adjustment Range

Pin-hole: 3.7 mm @ F2.5, horizontal FOV 71°

Day& Night

Electronic

Wide Dynamic Range

120dB

Compression Standard

Video Compression

H.265+/H.265/H.264+/H.264/MJPEG

H.264 code profile

Baseline Profile/Main Profile/High Profile

Video bit rate

32Kbps~16Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio bit rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Dual Stream

Yes

Triple Streams

Yes


Max. Image Resolution

1920 x 1080

Sub Stream

50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)

60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)

Third Stream

50Hz: 1fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 240)

60Hz: 1fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480, 640 x 360, 352 x 240, 320 x 240)

Image Enhancement

BLC, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Target Cropping

No

BLC

Support

3D DNR

Support

ROI

1 fixed region for main stream and sub stream

Picture Overlay

No

Day/Night Switch

Day/Night/Auto/Schedule/ Triggered by Alarm In

Network

Network Storage

microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

General Function

One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter

System Compatibility

ONVIF (Profile S, Profile G), ISAPI

Intelligent

Behavior analysis

Line crossing detection, intrusion detection, unattended baggage detection, object removal detection

Interface

Communication Interface

1 RJ45 10M/100M Ethernet port

1 VIN port

1 RS-485

Audio

1 input, 1 output

Alarm

1 input, 1 output (up to 24 VAC, 1A or 110 VAC, 500mA)

Alarm Input

1

Alarm Output

1

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button

Yes

Audio

Environment Noise Filtering

Support

Audio I/O

Support

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Smart Feature-set

Line Crossing Detection

Cross a pre-defined virtual line

Intrusion Detection

Enter and loiter in a pre-defined virtual region

Object Removal

Objects removed from the pre-defined region, such as the exhibits on display

General

Power Supply

12VDC ± 20%, two-core terminal block, PoE: (802.3af, class 2)

Power Consumption

12VDC ± 20%, 0.25 A, max. 3 W

PoE: (802.3af, 36V-57V), 0.2A to 0.1A, Max: 3.5W

Dimensions

77.1 x 69 x 26 mm

Weight

87g
