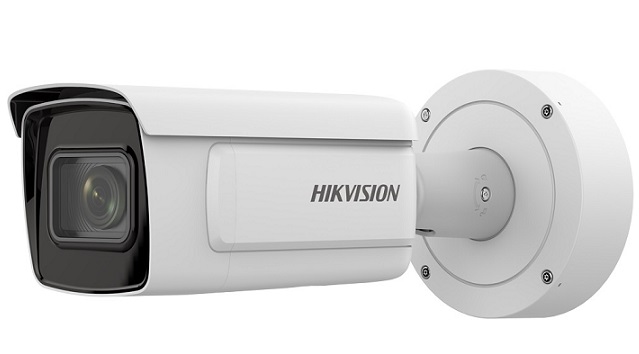

Camera IP nhận diện biển số xe HIKVISION iDS-2CD7A46G0/P-IZHSY (8~32 mm)

Model

iDS-2CD7A46G0/P-IZHSY

Camera

Image Sensor

1/1.8 inch Progressive Scan CMOS

Min. Illumination

Color: 0.001 Lux @ (F1.2, AGC ON); B/W: 0.0003 Lux @ (F1.2, AGC ON)

Shutter Speed

1 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

WDR

140 dB

IR Range

100 m (8 to 32 mm)

Smart Supplement Light

Yes

Lens

Lens Type & FOV

8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

Aperture

8 to 32 mm: F1.7 to F1.73

Blue Glass Module

Blue glass module to reduce ghost phenomenon

P-Iris

Yes

Video

Max. Resolution

2680 ×1520

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

Scalable Video Coding (SVC)

H.265 and H.264 support

Region of Interest (ROI)

4 fixed regions for each stream

Audio

Environment Noise Filtering

Yes

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3

Audio Type

Mono sound

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Simultaneous Live View

Up to 20 channels

API

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

User/Host

Up to 32 users, 3 levels: administrator, operator and user


Smart IR

The IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure

Day/Night Switch

Day, Night, Auto, Schedule, Triggered by Alarm In, Triggered by Video

Target Cropping

Yes

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Image Parameters Switch

Yes

Interface

Alarm

2 inputs, 2 outputs (max. 24VDC, 1A)

Audio

1 input (line in), 1 output (line out), 3.5 mm connector

RS-485

1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Video Output

1 Vp-p Composite Output (75 Ω/CVBS) (For debugging only)

On-board Storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Communication

1 RJ45 10M/100M/1000M self-adaptive Ethernet port

Heater

Yes

Wiegand

1 wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)

Smart Feature-Set

Basic Event

Motion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection, up to 4 lines configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable
Scene change detection, audio exception detection, defocus detection

Counting

Yes

Premier Protection

Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc

Road Traffic and Vehicle Detection

Blocklist and allowlist: up to 10000 records
Captures vehicle that has no license plate
Support license plate recognition of motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, etc. (City
Street mode is recommended.)

General

General Function

Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Power Supply

12 VDC ± 20%, three-core terminal block, reverse polarity protection; PoE: 802.3at, Type 2 Class 4

Startup and Operating Conditions

40°C to 60°C (-40°F to 140°F). Humidity 95% or less (non-condensing)

Material

Aluminum alloy body

Protection

IP67

Dimensions

Ø140 × 351 mm

Weight

1920 g
