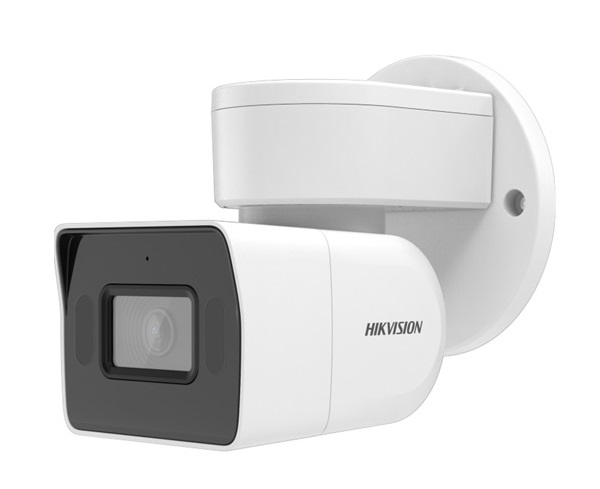

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD1P23G0-I

Model

DS-2CD1P23G0-I

Image Sensor

1/2.8 inch Progressive Scan CMOS

Min. Illumination

Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR on

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

120 dB

Day & Night

IR cut filter

Angle Adjustment

Horizontal: 0°~200°, vertical: -10°~55°

Power-off Memory

Yes

Presets

Yes

Lens

Lens Type & FOV

4 mm: Horizontal FOV: 87.3°, vertical FOV: 46.3°, diagonal FOV: 104.2°

6 mm: Horizontal FOV: 53.9°, vertical FOV: 28.8°, diagonal FOV: 62.8°

8 mm: Horizontal FOV: 40.9°, vertical FOV: 22.5°, diagonal FOV: 47.4°

12 mm: Horizontal FOV: 25.4°, vertical FOV: 14.4°, diagonal FOV: 29.1°

Aperture

F1.6

Lens Mount

M12

Illuminator

IR Range

Up to 40 m

Wavelength

850 nm

Smart Supplement Light

Yes

Video

Max. Resolution

1920 × 1080

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50 Hz: 1 fps (1280 × 720, 640 × 360)

Video Compression

Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Yes

H.265+

Yes

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

Yes

Region of Interest (ROI)

1 fixed region for main stream

Audio

Environment Noise Filtering

Yes

Sampling Rate

8kHz/16kHz/32kHz/44.1kHZ/48kHz

Audio Compression

G.711a/G.711u/G.722.1/G.726/MP2L2/PCM/AAC

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~192 Kbps (MP2L2)/ 16~64Kbps (AAC)

Network

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, SMTP, IGMP, QoS, UDP, Bonjour, SSL/TLS, 802.1x, UPnP

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE8, IE9, IE10, IE11
Local service: Chrome 57.0+, Firefox 52.0+


Smart IR

Yes

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

Audio

1 built-in microphone

Hardware Reset

Yes

Communication Interface

1 10M/100M self-adaptive Ethernet port

Event

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

General

Linkage Method

Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture

General Function

Heartbeat, mirror, password protection, watermark, IP address filtering, flash log, pixel counter

Software Reset

Yes

Storage Conditions

-30 °C to 60 °C. Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C. Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25% ; reverse polarity protection
PoE: 802.3at, Class 4

Power Consumption and Current

12 VDC, 0.8 A, max. 9.6 W
PoE: 802.3at, 42.5 V~57 V, 0.28 A~0.21 A, max. 12 W

Power Interface

Φ5.5 mm coaxial power plug

Camera Dimension

84.4 × 65.3 × 125.4 mm

Camera Weight

Approx. 698 g
