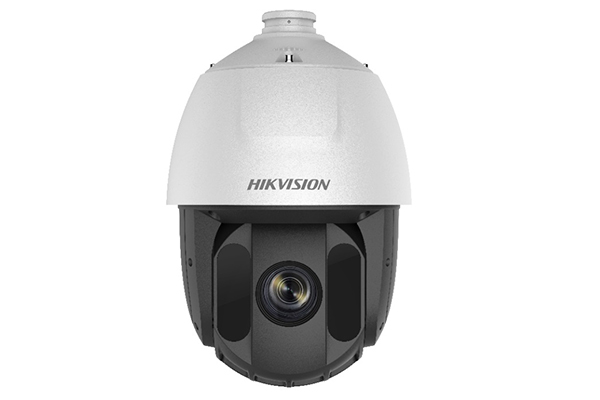

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2DE5232IW-AE(S5)

Model

DS-2DE5232IW-AE(S5)

Camera

Image Sensor

1/2.8 inch progressive scan CMOS

Min. Illumination

0 Lux with IR,color: 0.005Lux @ (F1.2，AGC ON) B/W: 0.001Lux @ (F1.2, AGC ON)

Shutter Speed

1/1s-1/30000s

Slow Shutter

Yes

Focus

Semi-auto; manual; auto

Day & Night

ICR

Day/Night Switch

Day, night, auto, scheduled-switch

BLC, HLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus,

Yes

WDR

120 dB WDR

Image Settings

Brightness; contrast; sharpness; saturation

White Balance

Auto; ATW;sodium lamp;indoor; fluorescent lamp; outdoor; MWB;Locked WB; Locked WB

Digital Zoom

16x

Optical Zoom

32x

Privacy Mask

Up to 24 masks;mosaic mask; mask color configurable; polygon region

SNR

＞52dB

Lens

Focal Length

4.8 mm to 153mm, 32× Optical

Zoom Speed

Approx. 4.2 s

FOV

Horizontal field of view: 58.4° to 2.14° (wide-tele), Vertical field of view: 33.8° to 1.2° (wide-tele), Diagonal field of view: 65.6° to 2.46° (wide-tele)

Aperture

F1.2

PTZ

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90°(auto flip)

Pan Speed

Pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s

Proportional Zoom

Yes

Presets

300

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans

Power-Off Memory

Yes

Park Action

Preset; pattern scan; patrol scan; auto scan; tilt scan; random scan; frame scan; panorama scan

3D Positioning, PTZ Status Display, Preset Freezing

Yes

Scheduled Task

Preset; auto scan; random scan; frame scan; patrol scan; pattern

Video

Max. Resolution

1920 × 1080

Stream Type

Main stream; sub-stream; third stream

Video Compression

H.265;H.264;MJPEG

Video Bit Rate

32kbps to 16384kbps

H.264 Type

Baseline profile; main profile; high profile

H.265 Type

Main profile

H.264+

Yes

H.265+

Yes

SVC

ROI

Dynamic face tracking;;main stream, sub-stream and third stream respectively support eight fixed areas

Audio

Audio Compression

G.711alaw; G.711ulaw; G.722.1; G.726; MP2L2; PCM

Audio Bit Rate

MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 k

Audio Sampling Rate

MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz

Environment Noise Filtering

Yes

Smart Features

Face Capture

Yes

Basic Event

Audio exception; motion detection; video tampering alarm; exception

Smart Event

Intrusion detection; line crossing detection; region entrance detection; region exiting detection; unattended baggage detection; object removal detection

Smart Record

ANR; Dual-VCA

Alarm Linkage

Preset; patrol scan; pattern scan; memory card video recording; alarm output; sending email, notify surveillance center; upload to FTP

Network

Network Storage

NAS (NFS, SMB/ CIFS); ANR

Protocols

IPv4/IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTCP;RTP; TCP/IP; UDP; IGMP; ICMP; DHCP; PPPoE; Bonjour

API

ISAPI; Hikvision SDK; ONVIF (Profile S, Profile G, Profile T); ISUP;Hik-Connect

Simultaneous Live View

20

User/Host

32

Smooth Streaming

Yes

Security Measures

Authenticated username and password; MAC address binding; HTTPS encryption;802.1X a

Client

iVMS-4200; Hik-Connect

Web Browser

IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+

Interface

Communication Interface

1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at);RJ45, self-adaptive 10M/100M Ethernet port

On-Board Storage

Support microSD/microSDHC/microSDXC cards; up to 256 GB

Alarm Input

2 alarm input

Alarm Output

1 alarm output

Audio Input

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%

Audio Output

1 audio output, line level, impedance: 600 Ω

Supplement Light

IR Distance

150m

General

Power

24VDC, Hi-PoE

Power Consumption And Current

Max. 30 W, including max. 10 W for IR

Demist

Humidity lower than 90%RH ; temperature: -30℃ to 65℃ (-22°F to 149°F)

Reset

Yes

Material

ADC 12, PC, PC+10% GF

Dimensions

Φ 208 mm × 345 mm

Weight

Approx. 3.3 kg (7.28 lb)

Protection

IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
