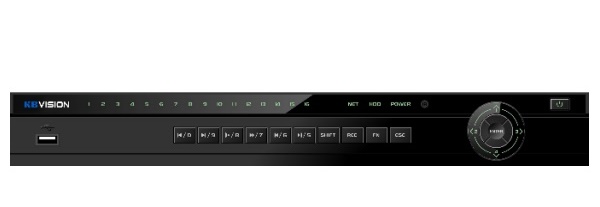

Đầu ghi hình 16 kênh 5 in 1 KBVISION KX-EAi4K8216H2

Đầu ghi hình KBVISION 16 kênh 5 in 1 KX-EAi4K8216H2

- Đầu ghi hình AI nhận diện khuôn mặt 16 kênh.

- Hỗ trợ kết nối 5 in 1 HDCVI/AHD/TVI/CVBS/IP.

- Hỗ trợ ghi hình: Main stream: 4K (1fps–15fps); 6MP/5MP(1fps–25fps);4K-4MP/3MP/1080P/720P/960H/D1/CIF (1fps–25/30fps); Sub stream: 960H(1fps–15fps); D1/CIF(1fps–25/30fps)

- Chuẩn nén hình ảnh: AI Coding/H.265+/H.265/H.264+/H.264.

- Hỗ trợ camera IP tối đa 32 kênh, lên đến 8 Megapixel. Băng thông tối đa 128 Mbps.

- Hỗ trợ 6 kênh Bảo vệ chu vi và 16 kênh SMD Plus.

- Chế độ xem lại: 1/4/9/16 kênh cùng lúc.

- Tương thích với tín hiệu ngõ ra: 1 HDMI, 1 VGA, 1 TV out.

- Cổng mạng: 1 RJ-45 Port (1000Mbps).

- Hỗ trợ 2 cổng SATA dung lượng 10TB mỗi ổ cứng.

- Hỗ trợ 6 kênh Face recognition (chỉ hỗ trợ camera analog).

- Tốc độ xử lý: lên đến 12 khuôn mặt/giây.

- Cảnh báo người lạ: phát hiện người lạ mặt (không có trong cơ sở dữ liệu của thiết bị).

- Hỗ trợ tìm kiếm và phân loại theo mục tiêu (Người, Phương tiện).

- Hỗ trợ cổng Audio in/out đàm thoại 2 chiều hoặc ghi âm cho kênh 1.

- Hỗ trợ 128 người sử dụng truy cập cùng lúc thích hợp cho những dự án như trường học, trường mầm non...

- Hỗ trợ kết nối với camera của các hãng khác như: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek,...

Đặc tính kỹ thuật

System
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Perimeter Protection
Performance	6 channels, 10 IVS for each channel
Object classification	Human/Vehicle secondary recognition for tripwire and intrusion
AI Search	Search by target classification (Human, Vehicle)
Face Recognition
Performance	6 channels, max 12 face pictures/sec processing
Stranger Mode	Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.
AI Search	Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management	Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries & regions and state can be added to each face picture.
Database Application	Each database can be applied to video channels independently.
Trigger Events	Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD Plus
Performance	16 channels
AI Search	Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input	16 channels, BNC
HDCVI Camera Input	4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps>
AHD Camera Input	4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps>
TVI Camera Input	4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps>
CVBS Camera Input	PAL/NTSC
IP Camera Input	16+16 channels, each channel up to 8MP
Audio In/Out	1/1, RCA
Two-way Talk	Reuse audio in/out, RCA
Recording
Compression	AI Coding/H.265+/H.265/H.264+/H.264
Resolution	4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF
Record Rate	Main stream: 4K (1fps–15fps); 6MP/5MP(1fps–25fps); 4K-N/4MP/3MP/1080P/720P/960H/D1/CIF (1fps–25/30fps) Sub steram:960H(1fps–15fps); D1/CIF(1fps–25/30fps)
Bit Rate	32 Kbps–8192 Kbps Per Channel
Record Mode	Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval	1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression	G.711A, G.711U, PCM
Audio Sample Rate	8 KHz, 16 bit Per Channel
Audio Bit Rate	64 Kbps Per Channel
Display
Interface	1 HDMI, 1 VGA, 1 TV
Resolution	HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display	When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface	1 RJ-45 Port (1000 Mbps)
Network Function	HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Playback and Backup
Playback	1/4/9/16
Search Mode	Time/Date, Alarm, MD and Exact Search (accurate to second)
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device/Network
Storage
Internal HDD	2 SATA Ports, up to 10TB capacity for each disk
Auxiliary Interface
USB	2 USB Ports (1 USB 2.0 , 1 USB 3.0)
RS485	1 Port, for PTZ Control
Electrical
Power Supply	DC 12V/5A
Power Consumption
Construction
Dimensions	1U, 375 mm × 332 mm × 53 mm
Net Weight (without HDD)	2.4 kg (5.4 lb)
Gross Weight	4.0 kg (8.8 lb)
Installation	Desktop/racket mounted
Environmental
Operating Conditions	-10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions	-20°C to +70°C (-4°F to +158°F) , 0–90% RH
Third-party Support
Third-party Support	Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
