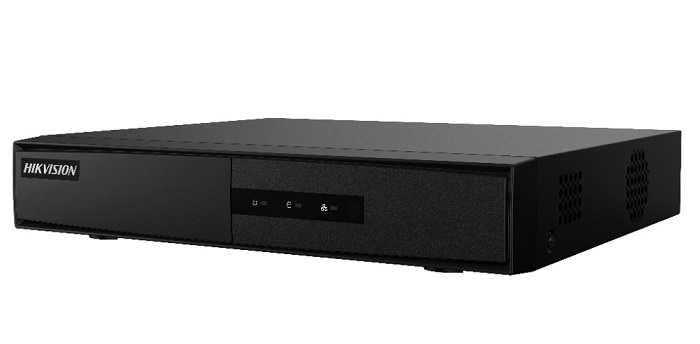

Đầu ghi hình 8 kênh 5 in 1 HIKVISION DS-7208HGHI-K1(S)

Model

DS-7204HGHI-K1(S)

Recording

Video compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding resolution

When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p Lite/HD 720p lite/WD1/4CIF/VGA/CIF

Frame rate

Main stream:
When 1080p Lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA/CIF@15 fps;
For SD stream access:
WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
1080p Lite/HD 720p
Lite/WD1/4CIF/VGA/CIF@15 fps

Sub-stream: CIF/QVGA@25 fps (P)/30 fps (N)

Video bit rate

32 Kbps to 4 Mbps

Stream type

Video, Video & Audio

Audio compression

G.711u

Audio bit rate

64 Kbps

Video and Audio

IP video input

2-ch (up to 10-ch) up to 5 MP resolution

Analog video input

8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Turbo HD input

1080p25, 1080p30, 720p25, 720p30

AHD input

1080p25, 1080p30, 720p25, 720p30

HDCVI input

1080p25, 1080p30, 720p25, 720p30

CVBS input

Support

HDMI/VGA output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA simultaneous output

Audio input

1-ch RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable

Audio output

1-ch, RCA (Linear, 1 KΩ)

Synchronous playback

8-ch

Network

Remote connection

64

Network protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Network interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary interface

SATA

1 SATA interface

Capacity

Up to 4 TB capacity for each disk

USB interface

Rear panel: 2 × USB 2.0

General

Power supply

12 VDC, 1.5 A

Consumption (without HDD)

≤ 17 W

Working temperature

10 °C to 55 °C (14 °F to +31 °F)

Working humidity

10% to 90%

Dimension (W × D × H)

260 × 222 × 45 mm

Weight (without HDD)

≤ 1 kg
