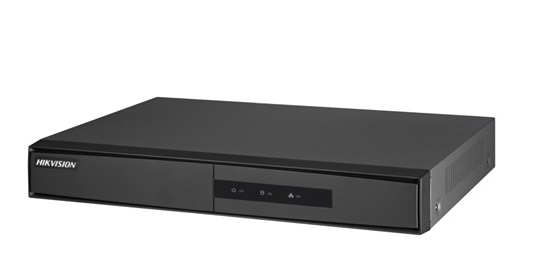

Đầu ghi hình 8 kênh Turbo HD 3.0 HIKVISION DS-7208HGHI-F1/NB

Model

DS-7208HGHI-F1/NB

Video/Audio Input

Audio Input

1-ch

Video Compression

H.264, H.264+

Analog Video Input

8-ch

Analog and HD-TVI video input

1080p25, 1080p30, 720p25, 720p30

IP Video Input

2-ch (up to 10-ch)

IP Video Input Resolution

Up to 960p resolution

Audio Compression

G.711u

Two-way Audio

1-ch RCA (2.0Vp-p, 1kΩ)

Video/Audio Output

HDMI/VGA Output

1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Recording resolution

When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF

Video Bit Rate

32 Kbps ~ 4 Mbps

Audio Bit Rate

64kbps

Synchronous Playback

8-ch

Network management

Remote connections

128

Network protocols

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard Disk Driver

Interface Type

1 SATA Interface

Capacity

Up to 6 TB capacity for each disk

External Interface

Network Interface

1; 10M / 100M self-adaptive Ethernet interface

USB

2 USB 2.0 Interfaces

General

Power Supply

12 VDC

Consumption

≤ 12 W

Working Temperature

-10ºC to +55ºC

Working Humidity

10% to 90%

Dimensions

260 × 222 × 45 mm

Weight

≤ 1kg
