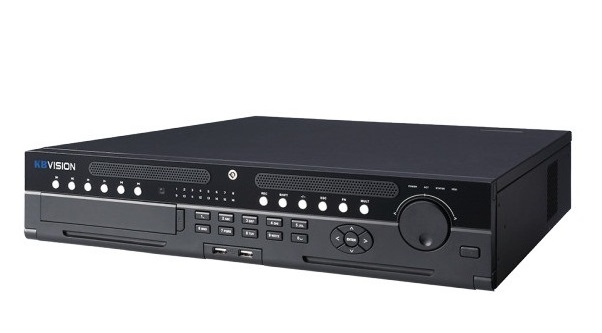

Đầu ghi hình camera IP 128 kênh KBVISION KR-E4K98128NR

Đầu ghi hình KBVISION camera IP 128 kênh KR-E4K98128NR

- Đầu ghi hình NVR 128 kênh.

- Hỗ trợ 128 kênh IP ngõ vào độ phân giải lên đến 12 Megapixel, băng thông tối đa 384Mbps.

- Chuẩn nén hình ảnh: H.265/H.264/MJPEG.

- Tương thích với tín hiệu ngõ ra: 1 VGA + 2 HDMI 4K (3840x2160).

- Đa hiển thị: Màn hình 1: 1/4/8/9/16/25/36, Màn hình 2: 1/4/8/9/16.

- Chế độ xem lại: 64 Mbps chế độ thường hoặc 128 Mbps ở RAID 5.

- Hỗ trợ: Chuẩn Onvif 2.4, Cloud, QR Code, âm thanh hai chiều.

- Hỗ trợ 2 RJ-45 Ports (10/100/1000Mbps).

- Hỗ trợ 8 ổ cứng SATA dung lượng lên đến 64TB.

- Hỗ trợ 1 eSATA, 2 USB 2.0, 2 USB 3.0.

- Hỗ trợ 16 alarm in/ 8 alarm out.

- Hỗ trợ RAID 0/1/5/6/10, N+M hot stanby, iSCSI cho phép mở rộng không gian lưu trữ.

- Hỗ trợ 128 người sử dụng truy cập cùng lúc.

- Hỗ trợ kết nối với camera của các hãng khác như: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek,...

Đặc tính kỹ thuật

Model	KR-E4K98128NR
System
Main Processor	Intel Quad-core Processor
Operating System	Embedded LINUX
Video and Audio
IP Camera Input	128 Channel
Two-way Talk	1 Channel Input, 1 Channel Output, RCA
Recording
Compression	H.265/H.264/MJPEG
Resolution	12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Record Rate	384Mbps
Record Mode	Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Holiday, Stop
Record Interval	1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Display
Interface	2 HDMI (up to 3840 x 2160, Diff­erent Source), 1 VGA
Resolution	3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display	1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface	2 RJ-45 Ports (10/100/1000Mbps)
Ethernet Port	2 Independent 1000Mbps Ethernet Port or 2 Ethernet Ports Joint Working
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support IP Camera, DVR, NVS, etc.)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 2.4, CGI Conformant
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input	16 Channel, Low Level Effective, Green Terminal Interface
Relay Output	8 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event	Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc
Playback and Backup
Playback	128 Mbpsin Raid 5 Mode; 64 Mbpsin single HDD Mode
Search Mode	Time/Date, Alarm, MD and Exact Search (accurate to second)
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device/Network/eSATA Device
Storage
Internal HDD	8 SATA III Ports, Up to 8 TB capacity for each HDD
HDD Mode	Single, Raid 0/1/5/6/10 (Enterprise-level HDDs are recommended), Support Global HDD Hot-spare
eSATA	1 eSATA Port (Please contact technical engineer to confirm the compatible device)
Auxiliary Interface
Front Cover	Support Hot-swap
USB	4 USB Ports (2 USB 2.0, 2 USB 3.0)
RS232	1 Port, for PC Communication and Keyboard
RS485	1 Port, for PTZ Control
General
Power Supply	AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption
Dimensions	2U, 444 x 457.08 x 95 mm
Weight	9kg
