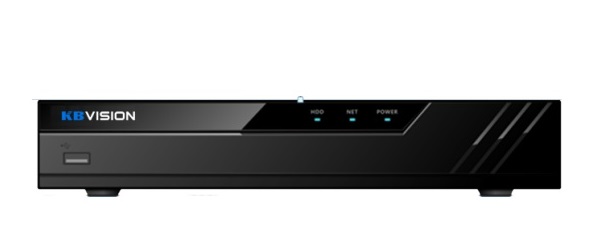

Đầu ghi hình camera IP 16 kênh KBVISION KX-CAi4K8116N2

System

Main Processor

Industrial-grade embedded processor

Operating System

Embedded Linux

Operation Interface

Web/operating in local GUI

Video

Access Channel

16 channels

Network Bandwidth

200 Mbps for access, 200 Mbps for storage and 100 Mbps for forwarding

Resolution

12M/8M/5M/4M/3M/2M/720p/D1

Decoding Capability

1-channel 8MP@30fps>
4-channel 1080p@30fps>

Video Output

1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4K

Multi-screen Display

1/4/8/9/16

Third Party Camera Access

Onvif, RTSP

Compression

Video

H.264/.H265/Smart H.264+/Smart H.265+/MJPEG

Audio

PCM/G711A/G711U/G26/AAC

Network

Network Protocol

HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS

Mobile Phone Access

Android, iOS

Interoperability

ONVIF (profile T/profile S/profile G), CGI, SDK

Browser

Chrome, IE9 or above, Firefox

Record Playback

Multi-channel Playback

Up to 16 channels playback

Record Mode

Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording

Storage

Local HDD and network

Backup

USB device

Playback Function

1. Play, pause, stop, fast forward, fast backward, rewind, play by frame
2. Full screen, backup (cut/file), partially enlarge, audio on/off

SMD Plus

Performance

4 channels

AI Search

Search by target classification (human, vehicle)

Face Recognition

Performance

Max 8 face pictures/sec processing
1 channel video stream face recognition

Stranger Mode

Detect strangers' faces (not in device's face database). Similarity threshold can be set manually

AI Search

Up to 8 target face images search at same time, similarity threshold can be set for each target face image

Database Management

Up to 10 face databases with 5,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries & regions and state can be added to each face picture

Database Application

Each database can be applied to video channels independently

Trigger Events

Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

Alarm Linkage

Video recording, snapshot, log, preset, tour

Perimeter Protection

Performance

2 channels

Object classification

Human/Vehicle secondary recognition for tripwire and intrusion

AI Search

Search by target classification (human, vehicle)

Alarm

General Alarm

Motion detection, privacy masking, video loss, PIR alarm, IPC alarm

Anomaly Alarm

Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly

Alarm Linkage

Video recording, snapshot, log, preset, tour

External Port

HDD

1 SATA port, up to 8 TB. The maximum HDD capacity varies with environment temperature

USB

1 front USB 2.0 port, 1 rear USB 2.0 port

HDMI

1

VGA

1

Network

1 RJ–45 port (10/100/1000 Mbps)

RCA Input

1

RCA Output

1

General Parameter

Power Supply

DC 12V, 1.5A

Power Consumption

Total output of NVR is ≤ 10W (without HDD)

Net Weight

0.81 kg (1.79 lb)

Product Dimensions

260 mm × 232.7 mm × 47.6 mm (W × L × H)

Operating Temperature

-10°C to +55°C (+14°F to +113°F)

Storage Temperature

0°C to +40°C (+32°F to +104°F)

Operating Humidity

10%–93%

Storage Humidity

30%–85%

Operating Altitude

3000 m (9843 ft)

Installation

Desktop mounting
