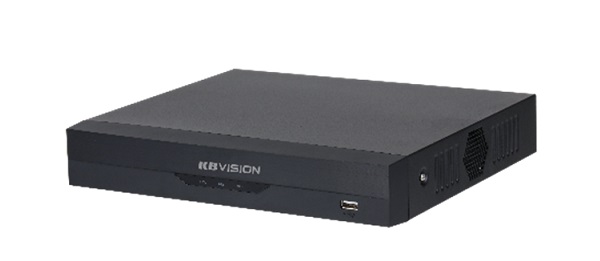

Đầu ghi hình camera IP 4 kênh KBVISION KX-CAi4K8104N2

Model

KX-CAi4K8104N2

System

Main Processor

Industrial-grade embedded processor

Operating System

Embedded Linux

Operation Interface

Web/operating in local GUI

Video

Access Channel

4 channels

Network Bandwidth

80 Mbps for access, 80 Mbps for storage and 60 Mbps for
forwarding

Resolution

12M/8M/5M/4M/3M/2M/720P/D1

Decoding Capability

1ch 8MP@30fps
4ch 1080P@30fps

Video Output

1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4K

Multi-screen Display

1/4

Third Party Camera Access

Onvif, RTSP

Compression

Video

H.264/.H265/Smart H.264+/Smart H.265+/MJPEG

Audio

PCM/G711A/G711U/G26/AAC

Network

Network Protocol

HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP,
DNS

Mobile Phone Access

Android, iOS

Interoperability

ONVIF (profile T/profile S/profile G), CGI, SDK

Browser

Chrome, IE9 or above, Firefox

Record Playback

Multi-channel Playback

Up to 4 channels playback

Record Mode

Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording

Storage

Local HDD and network

Backup

USB device

Playback Function

1. Play, pause, stop, fast forward, fast backward, rewind,
play by frame
2. Full screen, backup (cut/file), partially enlarge, audio
on/off

SMD Plus

Performance

4 channels

AI Search

Search by target classification (Human, Vehicle)

Face Recognition

Performance

Max 8 face pictures/sec processing
1 channel video stream face recognition

Stranger Mode

Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.

AI Search

Up to 8 target face images search at same time, similarity threshold can be set for each target face image.

Database Management

Up to 10 face databases with 5,000 face images in total.
Name, gender, birthday, address, certificate type, cerificate
No., countries®ions and state can be added to each face
picture.

Database Application

Each database can be applied to video channels
independently.

Trigger Events

Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc

Alarm Linkage

Video recording, snapshot, log, preset, tour

Perimeter Protection

Performance

2 channels

Object classification

Human/Vehicle secondary recognition for tripwire and intrusion

AI Search

Search by target classification (Human, Vehicle)

Alarm

General Alarm

Motion detection, privacy masking, video loss, PIR alarm, IPC alarm

Anomaly Alarm

Front-end device going offline, storage error, full storage, IP
conflict, MAC conflict, login lock, network security anomaly

Alarm Linkage

Video recording, snapshot, log, preset, tour

External Port

HDD

1 SATA port, up to 8 TB. The maximum HDD capacity varies
with environment temperature

USB

1 front USB 2.0 port, 1 rear USB 2.0 port

HDMI

1

VGA

1

Network

1 RJ–45 port (10/100 Mbps)

RCA Input

1

RCA Output

1

General Parameter

Power Supply

DC12V, 1.5A

Power Consumption

Total output of NVR is ≤ 10W (without HDD)

Net Weight

0.81 kg (1.79 lb)

Gross weight

1.38 kg (3.04 lb)

Product Dimensions

260 mm × 232.7 mm × 47.6 mm (W × L × H)
10.24 inch × 9.16 inch × 1.87 inch (W × L × H)

Package Dimensions

89 mm × 333 mm × 315 mm (W × L × H)
3.50 inch × 13.11 inch × 12.40 inch (W × L × H)

Operating Temperature

-10°C to 55°C (+14°F to +113°F)

Storage Temperature

0°C to 40°C (+32°F to +104°F)

Operating Humidity

10%–93%

Storage Humidity

30%–85%

Operating Altitude

3000 m (9843 ft)

Installation

Desktop mounting
