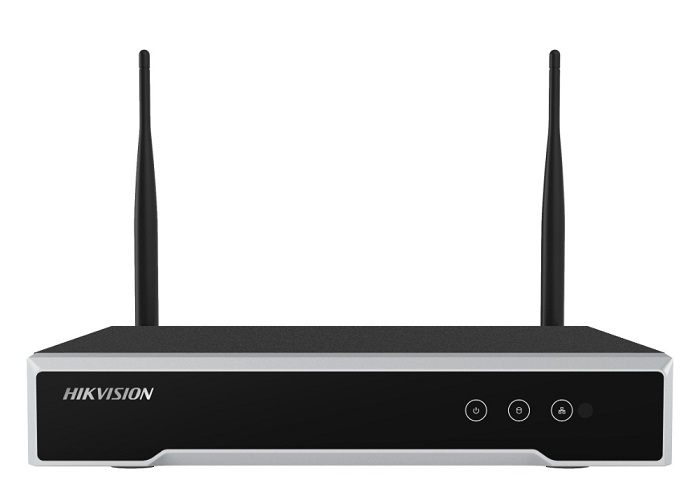

Đầu ghi hình camera IP Wifi 4 kênh HIKVISION DS-7104NI-K1/W/M
Liên hệ
- Mã sản phẩm: DS-7104NI-K1WM
- Supports line crossing and intrusion VCA (Video Content Analytics) events for IP cameras.
- Provides Wi-Fi function.
- Up to 16 terminals, including mobile phone and laptop, can access NVR via Wi-Fi.
- Dual external antenna design offers more powerful and stable signal.
Digitechjsc cam kết
100% sản phẩm chính hãng, đầy đủ CO, CQ
100% giá cạnh tranh so với thị trường
Chính sách bán hàng và bảo hành
Giao hàng trên toàn quốc
Hỗ trợ các đại lý và dự án
Bảo hành, đổi trả nhanh chóng
Hỗ trợ kỹ thuật chuyên nghiệp
Chính sách hậu mãi đầy hấp dẫn
Đầu ghi hình HIKVISION camera IP Wifi 4 kênh DS-7104NI-K1/W/M
- Up to 4 IP cameras (max. incoming bandwidth: 50 Mbps).
- Live view of the connected camera at up to 4 MP resolution.
- H.264, H.265, H.264+, and H.265+ compression.
- Full channel recording at up to 4 MP resolution.
- HDMI/VGA output with up to 1920 × 1080 resolution.
- 1 SATA interface for HDD with up to 6 TB capacity.
- Up to 4-ch synchronous playback.
- Smart search for efficient playback.
- Supports line crossing and intrusion VCA (Video Content Analytics) events for IP cameras.
- Provides Wi-Fi function.
- Up to 16 terminals, including mobile phone and laptop, can access NVR via Wi-Fi.
- Dual external antenna design offers more powerful and stable signal.
Specifications
|
Model |
DS-7104NI-K1/W/M |
|
Video/Audio input |
|
|
IP video input |
4-ch |
|
Incoming/outgoing bandwidth |
50/40 Mbps |
|
Video/Audio output |
|
|
HDMI/VGA output |
1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
Audio output |
1-ch, RCA (linear, 1 KΩ) |
|
Decoding |
|
|
Recording resolution |
4 M/3 M/1080p/1.3 M/720p |
|
Synchronous playback |
4-ch |
|
Capacity |
2-ch@1080p / 1-ch@4 MP |
|
Hard disk |
|
|
SATA |
1 SATA interface |
|
Capacity |
Up to 6 TB capacity for each disk |
|
Wireless parameters |
|
|
Frequency band |
2.4 GHz |
|
Antenna structure |
2 × 2MIMO |
|
Transmission speed |
144 Mbps |
|
Transmission standard |
IEEE 802.11b/g/n |
|
External interface |
|
|
Network interface |
1, RJ45 10/100M Ethernet interface |
|
USB interface |
Rear panel: 2 × USB 2.0 |
|
General |
|
|
Power supply |
12 VDC |
|
Consumption (without HDDs) |
≤ 12 W |
|
Working temperature |
-10 °C to +55 °C |
|
Working humidity |
10% to 90% |
|
Dimensions (W × D × H) |
260 × 246 × 48 mm |
|
Weight |
≤ 1 kg |
- Supports line crossing and intrusion VCA (Video Content Analytics) events for IP cameras.
- Provides Wi-Fi function.
- Up to 16 terminals, including mobile phone and laptop, can access NVR via Wi-Fi.
- Dual external antenna design offers more powerful and stable signal.
