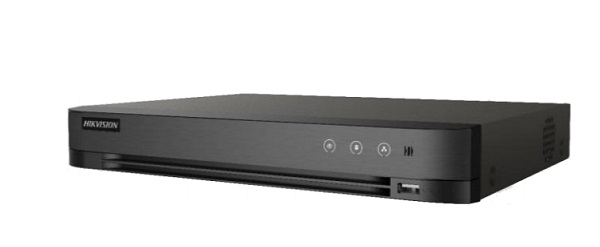

Đầu ghi hình Hybrid TVI-IP 16 kênh TURBO 5.0 HIKVISION IDS-7216HQHI-M1/FA

Đầu ghi hình HIKVISION Hybrid TVI-IP 16 kênh TURBO 5.0 IDS-7216HQHI-M1/FA

- Đầu ghi hình 16 kênh Turbo Acusense.

- Hỗ trợ 16 ngõ vào video.

- Chuẩn nén hình ảnh: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264.

- Hỗ trợ gán thêm 8 camera IP 4.0 megapixel (khi chưa tắt các kênh analog). Gán tối đa lên đến 24 camera IP 4.0 Megapixel khi tắt tất cả các kênh analog.

- Hỗ trợ 1 ổ cứng SATA với dung lượng lên đến 10TB.

- Hỗ trợ camera HDTVI, HDCVI, AHD, Analog.

- Hỗ trợ truyền âm thanh qua cáp đồng trục.

- Tương thích với tín hiệu ngõ ra: Cổng HDMI @1920x1080 ), VGA@  1920x1080, 01 ngõ ra CVBS.

- Cổng kết nối: 1 cổng RJ45 10/100Mbps, 1 cổng RS-485 (half-duplex), 1 cổng USB 2.0, 1 cổng USB 3.0.

- Tính năng thông minh VCA, tính năng tìm kiếm và phát hiện khuôn mặt ở kênh 1.

- Lọc báo động người/ phương tiện 2 kênh.

- Nguồn điện: 12VDC, 2A.

- Kích thước (W × D × H): 315 × 242 × 45 mm.

- Trọng lượng: ≤ 2 kg.

Đặc tính kỹ thuật

Model	iDS-7216HQHI-M1/FA
Facial Analysis
Facial detection and capture	Face picture comparison, face picture search
Face picture library	Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
Face picture comparison	1-ch face picture comparison alarm
Human/Vehicle Analysis
False alarm reduction	Up to 4-ch
Recording
Video compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution	Main stream: When 1080p lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
	Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Video bitrate	32 Kbps to 6 Mbps
Dual stream	Support
Stream type	Video, Video & Audio
Audio compression	G.711u
Audio bitrate	64 Kbps
Video and Audio
IP video input	2-ch (up to 18-ch) IP enhanced mode on: 8-ch (up to 24-ch), each up to 4 Mbps
	Up to 6 MP resolution
	Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input	16-ch
	BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input	4 MP lite, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/FA, for channel 1/2 of iDS-7208HQHI-M1/FA, and for channel 1/2/3/4 of iDS-7216HQHIM1/FA.
AHD input	4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI input	4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS input	PAL/NTSC
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output
Audio input	16-ch via coaxial cable
	8-ch via coaxial cable
Audio output	1-ch, RCA (Linear, 1 KΩ)
Two-way audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback	16-ch
Network
Remote connection	128
Network protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface	1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary interface
SATA	1 SATA interface, up to 10 TB capacity for each disk
Serial interface	RS-485 (half-duplex)
USB interface	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
General
Power supply	12 VDC, 2 A
Consumption (without HDD)	≤ 24 W
Working temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working humidity	10% to 90%
Dimension (W × D × H)	315 × 242 × 45 mm
Weight (without HDD)	≤ 2 kg
